Deye 8–15kW Split-Phase Hybrid Inverter
The Deye SG01HP2-US-AM2 integrates solar generation, battery charging and AC power management for split-phase solar-storage projects. Available power ratings are 8 / 10 / 12 / 15kW. Solarayen supplies the original Deye-branded inverter with model selection support for installers and distributors.
This series uses 160–500V batteries. It requires a compatible high-voltage lithium-ion battery system and cannot be connected directly to a 48V battery. Confirm the exact battery BMS protocol, site electrical supply and destination-country approval before ordering.

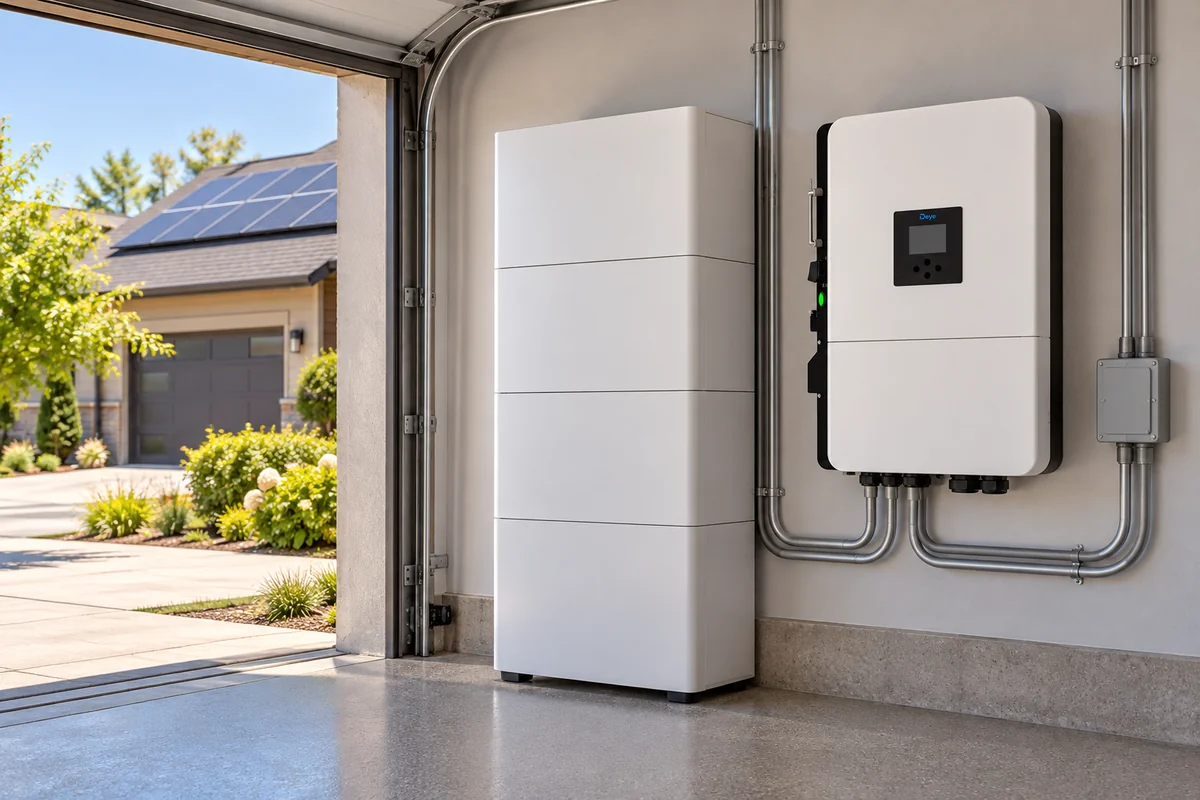

Conceptual application illustration. Installation and protection follow the manufacturer instructions and approved system design.
Key Features
- Two independent MPPTs for flexible PV array design.
- Battery charging and discharging with six programmable time periods.
- AC coupling for suitable existing solar installations.
- Up to 10 compatible inverters in parallel for on-grid and off-grid operation, according to Deye configuration requirements.
- Generator-supported battery charging for suitable systems.
- LCD interface for operation and monitoring.
- Maximum efficiency of 97.6% and MPPT efficiency above 99%.
- 100% unbalanced output supported, subject to model and system load limits.
Technical Specifications and Model Comparison
The table below follows the current Deye datasheet. Ratings differ by model; PV strings, battery current and AC protection must be checked for the selected power rating.
| Model | SUN-8K-SG01HP2-US-AM2 | SUN-10K-SG01HP2-US-AM2 | SUN-12K-SG01HP2-US-AM2 | SUN-15K-SG01HP2-US-AM2 |
| Battery Input Data | ||||
| Battery Type | Lithium-ion | |||
| Battery Voltage Range (V) | 160-500 | |||
| Max. Charging/Discharging Current (A) | 50 | |||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
| Number of Battery Input | 1 | |||
| PV String Input Data | ||||
| Max. PV Access Power (W) | 16000 | 20000 | 24000 | 30000 |
| Max. PV Input Power (W) | 12000 | 15000 | 18000 | 22500 |
| Max. PV Input Voltage (V) | 550 | |||
| Start-up Voltage (V) | 180 | |||
| MPPT Voltage Range (V) | 150-500 | |||
| Rated PV Input Voltage (V) | 380 | |||
| Max. Operating PV Input Current (A) | 26+26 | |||
| Max. Input Short-Circuit Current (A) | 39+39 | |||
| No. of MPP Trackers/No. of Strings MPP Tracker | 2/2+2 | |||
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power (W) | 8000 | 10000 | 12000 | 15000 |
| Max. AC Input/Output Apparent Power (VA) | 8000 | 10000 | 12000 | 15000 |
| Rated AC Input/Output Current (A) | 33.4 | 41.7 | 50 | 62.5 |
| Max. AC Input/Output Current (A) | 33.4 | 41.7 | 50 | 62.5 |
| Max. Continuous AC Passthrough (grid to load) (A) | 150 | |||
| Peak Power (off-grid) (W) | 2 times of rated power, 10s | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||
| Rated Input/Output Voltage | 120/240 0.85Un-1.1Un 2L+N+PE | |||
| Rated Input/Output Grid Frequency/Range(Hz) | 60/55-65 | |||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||
| DC Injection Current | <0.5% In | |||
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | >99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault CircuitInterrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
|||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| Interface | ||||
| LCD/LEDDisplay | LCD | |||
| Communication Interface | WIFI, RS485, CAN | |||
| General Data | ||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0-100% | |||
| Permissible Altitude | 2000m | |||
| Noise (dB) | ≤55 | |||
| Ingress Protection(IP) Rating | TYPE3R | |||
| Inverter Topology | Non-Isolated | |||
| Over Voltage Category | OVC II(DC),OVC IV(AC) | |||
| Cabinet Size (WxHxD mm) | 408×678×247 (Excluding Connectors and Brackets) | |||
| Weight (kg) | 30 | |||
| Type of Cooling | Intelligent Air Cooling | |||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. |
|||
| Grid Regulation | IEEE 1547.1,SRD V2.0 | |||
| Safety / EMC Standard | FCC, UL 1741 | |||
Cabinet dimensions exclude connectors and mounting brackets. The latest datasheet lists TYPE3R enclosure protection; confirm the supplied version and local installation requirements. Warranty availability depends on installation country and Deye policy.

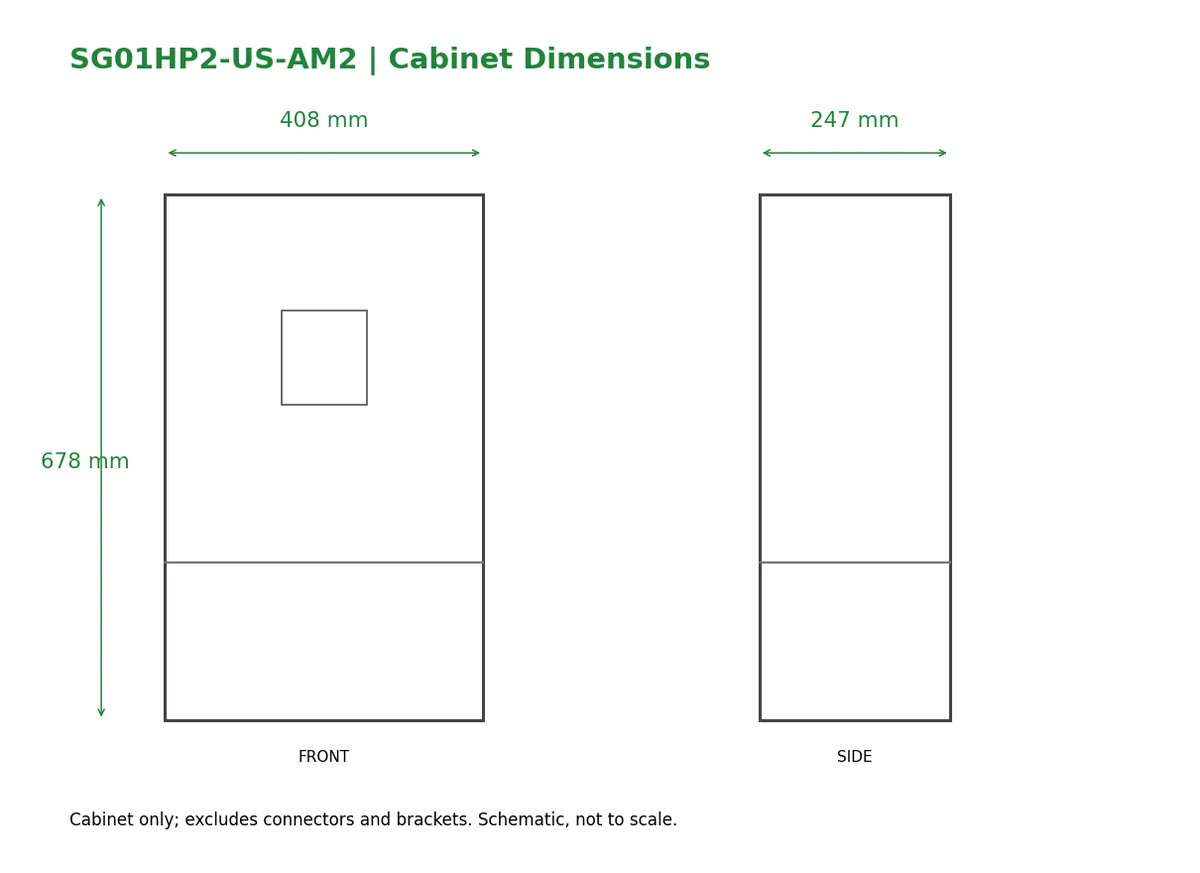

The gallery cabinet-size schematic uses the latest datasheet dimensions, 408 × 678 × 247mm. The linked earlier manual may show a previous mechanical drawing; confirm the final installation drawing for the supplied hardware.
Rear Construction and Mounting
The original manufacturer rear view helps identify the mounting layout and heat-sink structure.

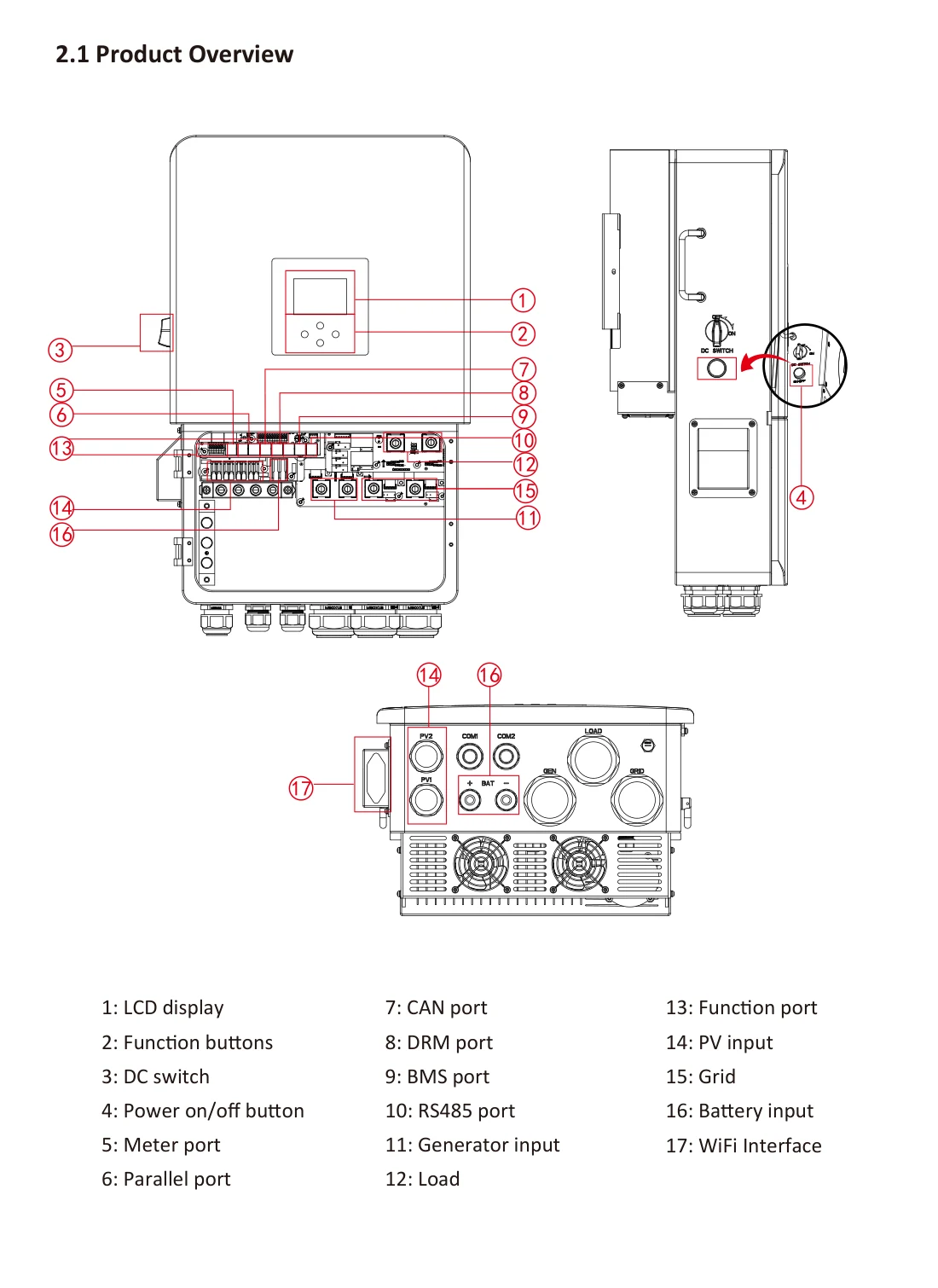

Controls and Connection Interfaces
The manufacturer overview identifies the LCD, operating controls, battery terminals, PV inputs and grid, load and generator connections. Use the exact manual for terminal identification and installation.

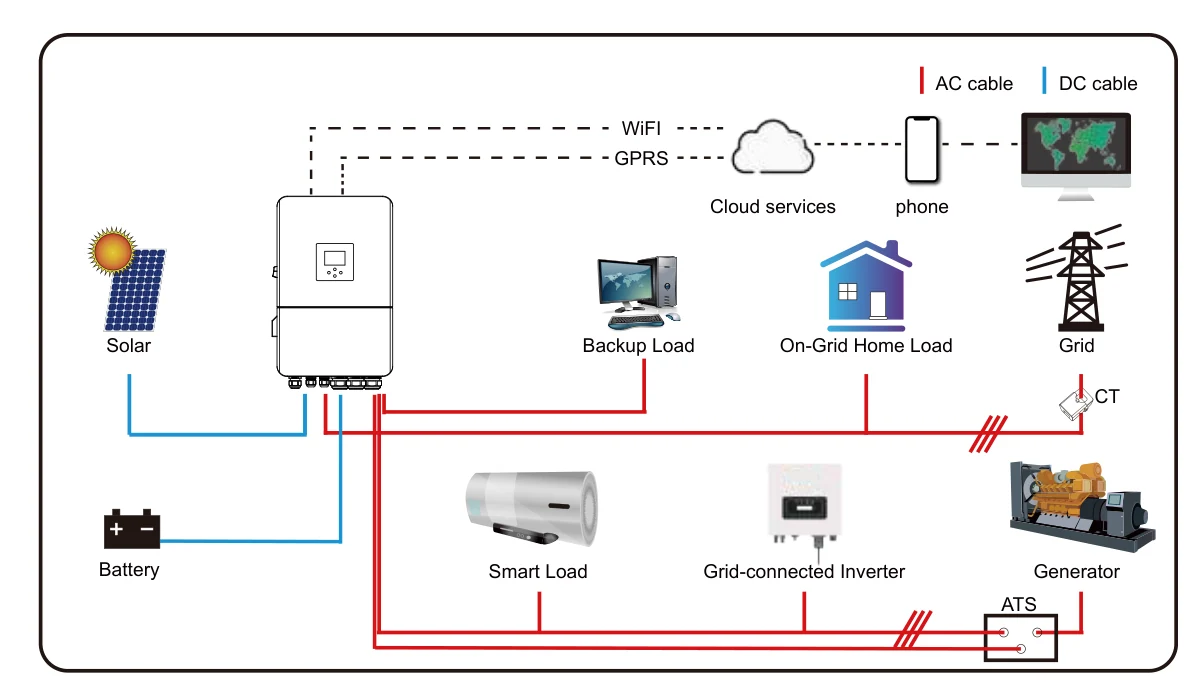

System Integration
The gallery architecture illustrates PV generation, battery storage, grid, backup loads and optional generator integration. It is a system overview; final cable sizing, protection, earthing and commissioning follow the installation manual.
Frequently Asked Questions
Is this a standard 230V single-phase inverter?
This product is designed for split-phase applications, with 120/240V and 60Hz ratings. Verify the exact supply, configuration and destination-country requirements before ordering.
Can it work with a 51.2V LiFePO4 battery?
No. This model requires a compatible 160–500V high-voltage lithium battery system. A 48V or 51.2V battery must not be connected directly.
Are all power variants identical?
No. The rated output is 8, 10, 12 or 15kW. PV input power and AC current vary by model; all use two MPPTs and a maximum battery charge/discharge current of 50A.
How long can it supply backup power?
Runtime depends on usable battery energy, load demand, battery limits and conversion losses. The inverter kW rating does not determine backup duration.
Can multiple units operate together?
Deye specifies up to 10 compatible units in parallel. Check firmware, communication, battery design and the exact manufacturer parallel wiring instructions.
What information is needed for a quotation?
Send the required power rating, country, grid voltage, battery model and quantity. Solarayen will confirm a suitable configuration, model availability and warranty terms.
