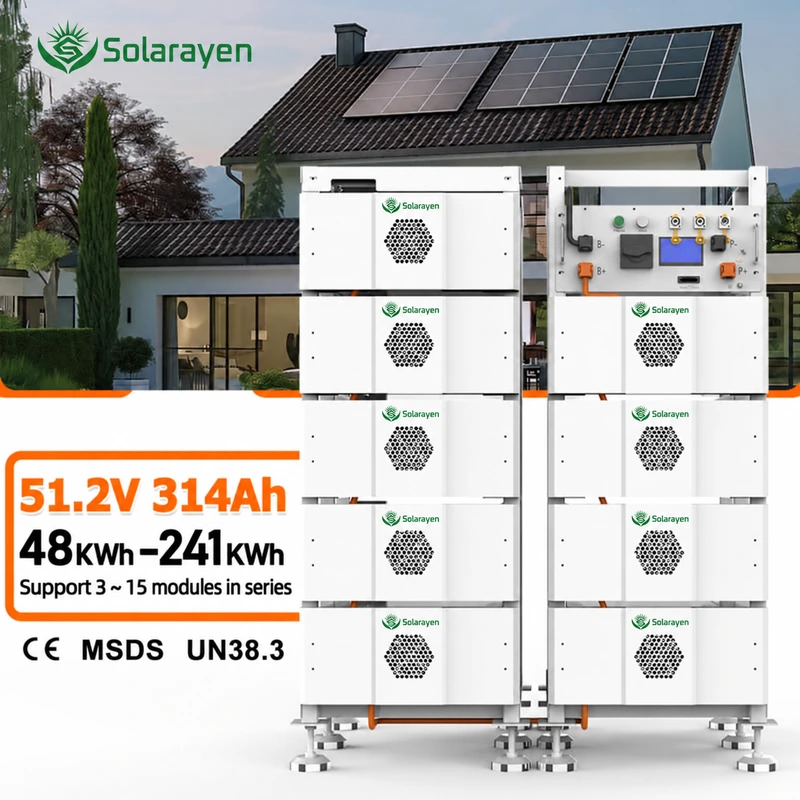

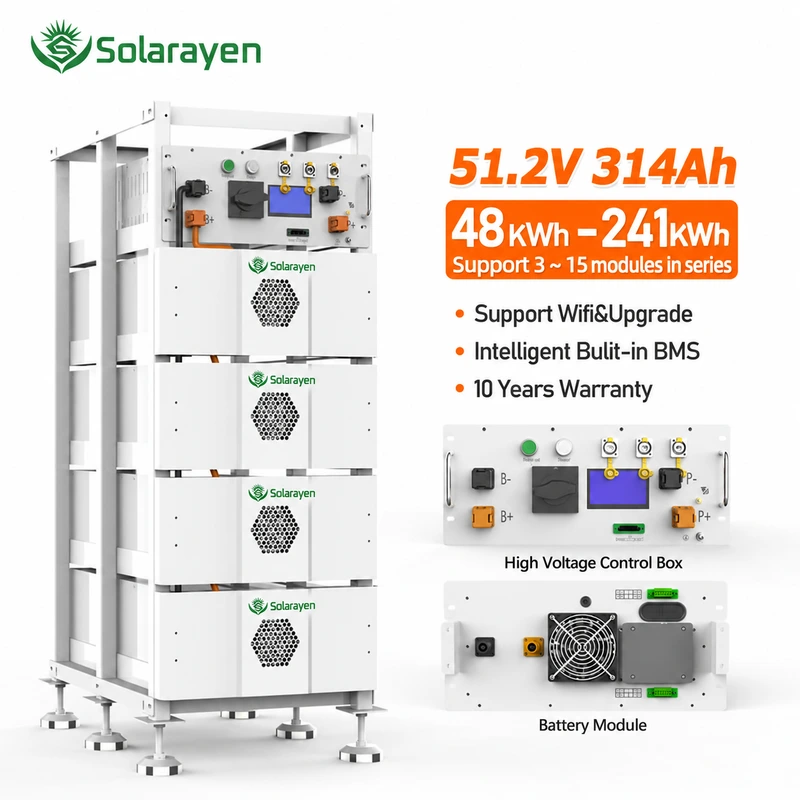

Solarayen high voltage rack-mounted LiFePO4 battery systems combine 280Ah or 314Ah modules, a high-voltage control box and a rack for stationary solar energy storage. Configure system energy around the project requirements.
Key Features
- Grade A LiFePO4 cells with integrated smart BMS.
- Accessible rack installation and modular maintenance.
- CAN / RS485 inverter communication.
- Wi-Fi monitoring; aerosol fire-suppression option.
Technical Specifications
| Module capacity | 280Ah | 314Ah |
| Module voltage | 51.2V | 51.2V |
| Module energy (kWh) | 14.336 | 16.0768 |
| 13-module system (kWh) | 186.368 | 208.9984 |
| 14-module system (kWh) | 200.704 | 225.0752 |
| 15-module system (kWh) | 215.04 | 241.152 |
| 13 / 14 / 15 modules: nominal voltage | 665.6 / 716.8 / 768V | 665.6 / 716.8 / 768V |
| Storage temperature | 0–35°C | 0–35°C |
| Recommended DOD | 90% | 90% |
Product Details

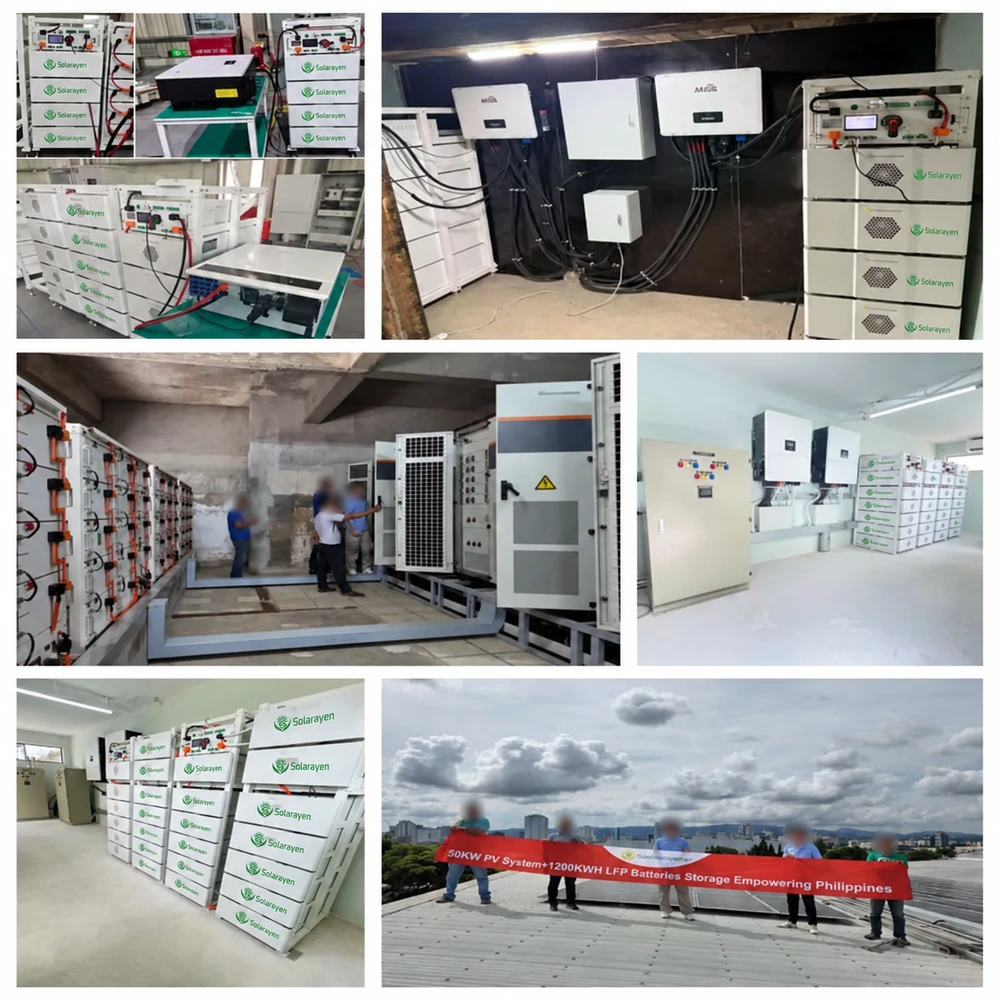

Installation Examples
Applications
Commercial solar storage, backup energy and stationary storage projects using compatible high-voltage equipment.
FAQ
Does this include an inverter?
This listing covers the battery system. Inverter supply and integration can be quoted to match the project.
Which configuration should I choose?
Send your target energy, inverter model, installation location and quantity. We will confirm the electrical limits, BMS protocol and rack arrangement.
