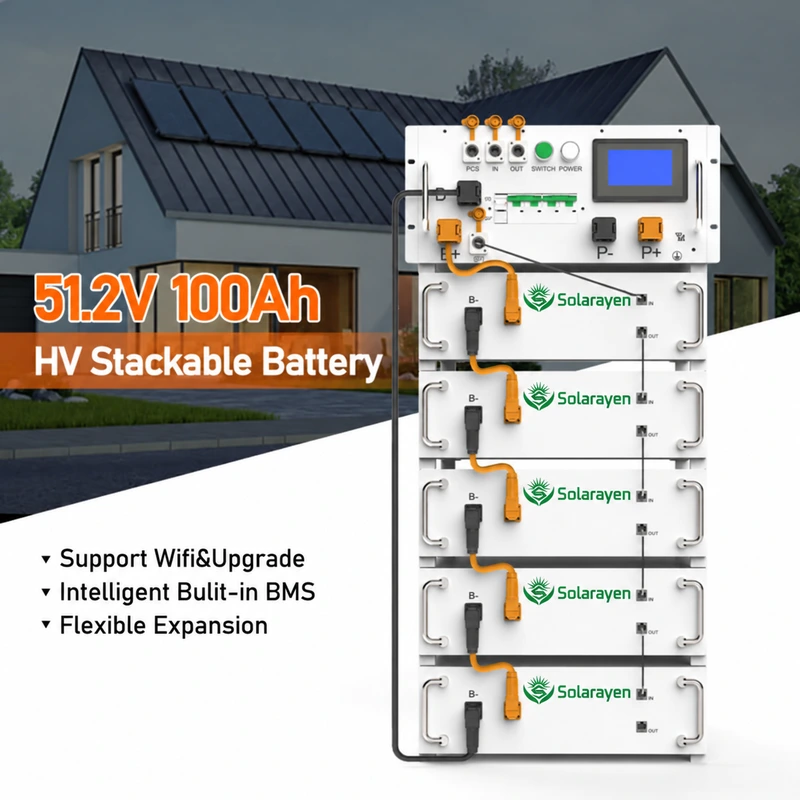

Solarayen 100Ah high voltage stackable LiFePO4 batteries offer modular storage for solar self-consumption and backup projects. Select the module quantity to suit the inverter voltage window and required energy.
Key Features
- Grade A LiFePO4 cells and integrated smart BMS.
- Stackable modules with accessible connections.
- Wi-Fi monitoring and upgrade support.
- CAN / RS485 communication.
Technical Specifications
| Module voltage / capacity | 51.2V / 100Ah |
| Module energy | 5.12kWh |

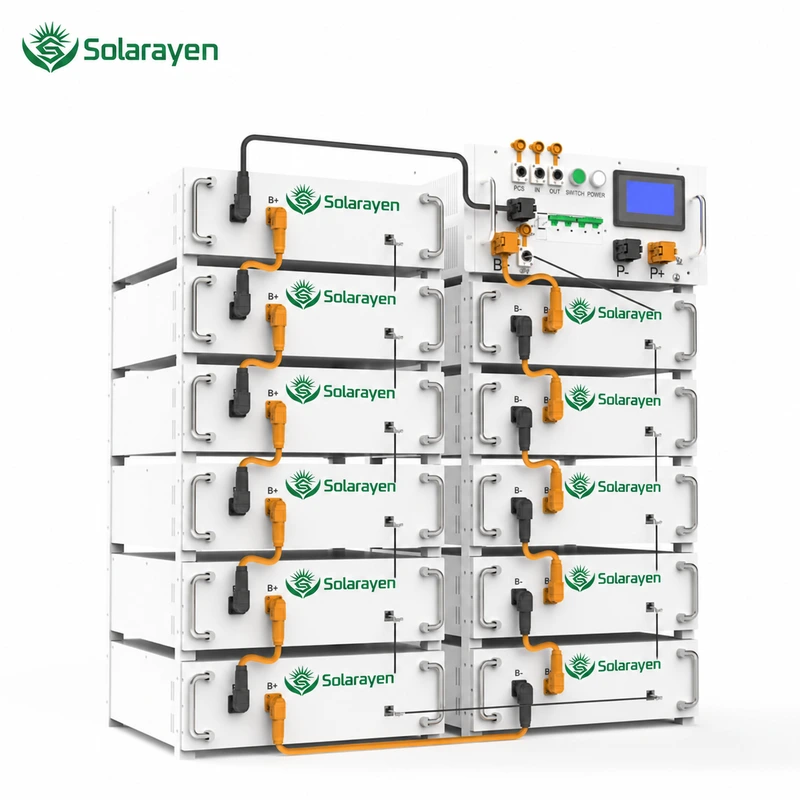

| Series expansion | 3–16 modules per cluster; up to 5 clusters in parallel |
| Example: 10 / 12 / 15 modules | 512 / 614.4 / 768V; 51.20 / 61.44 / 76.80kWh |
| Charge / discharge current | 50A |
| Cycle life | ≥6,000 cycles at 25±2°C, 0.5C/0.5C, 80% DOD |
| Temperature | Charge 0–55°C; discharge −20–55°C |
Product Details
Applications
Solar storage, backup supply and stationary energy projects with a compatible high-voltage hybrid inverter.
FAQ
Is 51.2V the complete system voltage?
No. It is the module voltage. Modules connect in series through the specified high-voltage control system.
Can I use any inverter?
Send the inverter brand and model so we can check voltage limits and BMS communication.
Send Inquiry
Share your required kWh, inverter model and quantity. Ask Solarayen for the final configuration, applicable certification documents and warranty terms.
