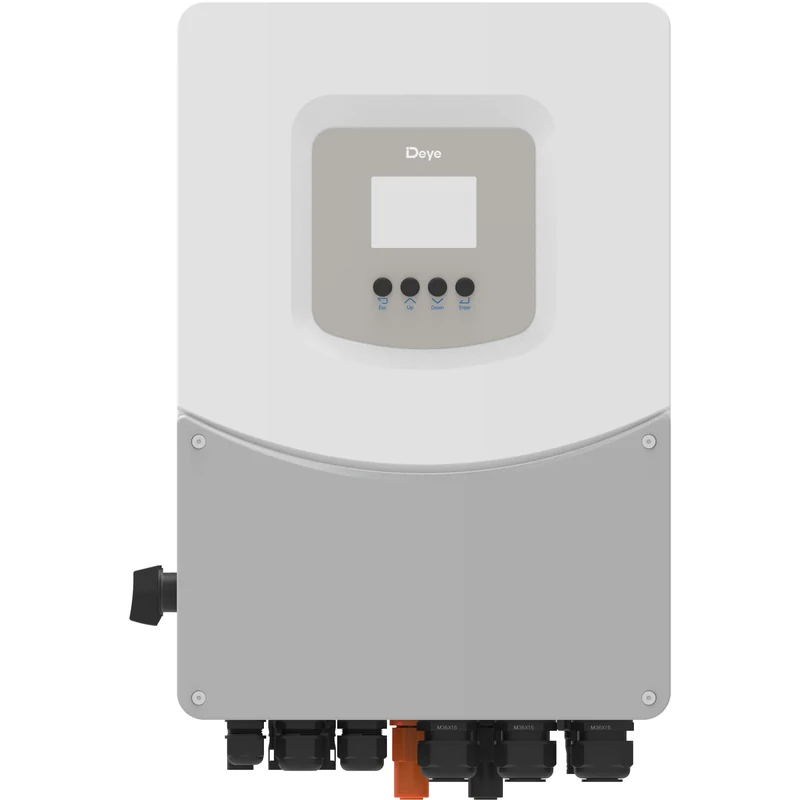

Deye 15–25kW Three-Phase High-Voltage Hybrid Inverter
The Deye SG02HP3-EU-DM3 integrates PV generation, high-voltage battery charging and three-phase AC power management. Solarayen supplies the original Deye-branded equipment for larger homes, small commercial projects, installers and distribution enquiries. Available variants are 15 / 20 / 25kW.
This series requires a compatible 160–700V high-voltage lithium battery system. It cannot connect directly to a 48V or 51.2V battery. Confirm the battery BMS protocol, firmware, usable voltage range and current capability against the exact inverter model.

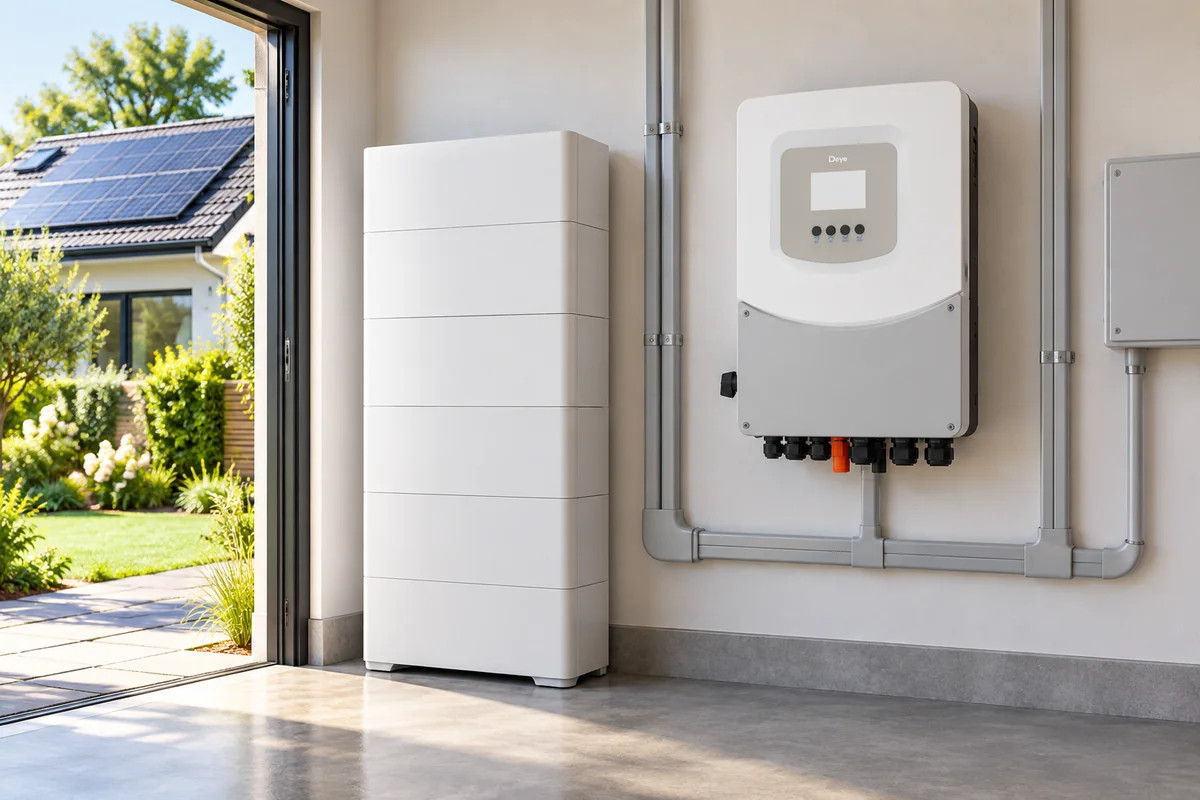

Conceptual application illustration. The final installation follows the approved system design and manufacturer instructions.
Key Features
- 3 MPPT for flexible PV-array tracking.
- One high-voltage battery input with a maximum charge/discharge current of 55A.
- Six programmable periods for battery charging and discharging.
- AC coupling for suitable existing solar systems.
- Up to ten compatible units in parallel for on-grid and off-grid operation, according to Deye configuration requirements.
- Generator-supported battery charging for suitable systems.
- IP65 enclosure with the specified cooling arrangement; keep required service access and ventilation clearances.
Model Selection and Input Limits
Choose 15, 20 or 25kW. All models have three MPPTs with asymmetric string inputs: 2+1+1. Maximum operating current is 36+20+20A, and short-circuit current is 54+30+30A. These limits are per tracker, not three identical 36A inputs.
Maximum PV input power is 24, 32 or 40kW respectively. The series has one battery input, a 55A maximum charge/discharge current and 60A continuous grid-to-load passthrough.
Technical Specifications
The table below follows the current official Deye product data and datasheet. Select the model column that matches the ordered rating and suffix.
| Model | SUN-15K-SG02HP3-EU-DM3 | SUN-20K-SG02HP3-EU-DM3 | SUN-25K-SG02HP3-EU-DM3 |
| Battery Input Data | |||
| Battery Type | Lithium-ion | ||
| Battery Voltage Range(V) | 160-700 | ||
| Max.Charging/Discharging Current(A) | 55 | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of Battery input | 1 | ||
| PV String Input Data | |||
| Max.PV Access Power (W) | 30000 | 40000 | 50000 |
| Max.PV Input Power（W） | 24000 | 32000 | 40000 |
| Max.PV Input Voltage（V） | 1000 | ||
| Start-up Voltage（V） | 180 | ||
| MPPT Voltage Range（V） | 150-850 | ||
| Rated PV Input Voltage(V) | 600 | ||
| Max.Operating PV Input Current（A） | 36+20+20 | ||
| Max.Input Short-Circuit Current（A） | 54+30+30 | ||
| No.of MPP Trackers/No.of Strings MPP Tracker | 3/2+1+1 | ||
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 15000 | 20000 | 25000 |
| Max. AC Input/Output Apparent Power （VA） | 16500 | 22000 | 27500 |
| Rated AC Input/Output Current（A） | 22.8/21.8 | 30.4/29.0 | 37.9/36.3 |
| Max. AC Input/Output Current（A） | 25/24 | 33.4/31.9 | 41.7/39.9 |
| Max. Continuous AC Passthrough (grid to load)（A） | 60 | ||
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Rated input/output voltage | 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE | ||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 97.0% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||
| Interface | |||
| LCD/LED Display | LCD+LED | ||
| Communication Interface | WIFI, RS485, CAN | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G | ||
| General Data | |||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude | 3000m | ||
| Noise (dB) | ≤45 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Type of Cooling | Intelligent Air Cooling | ||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. |
||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||

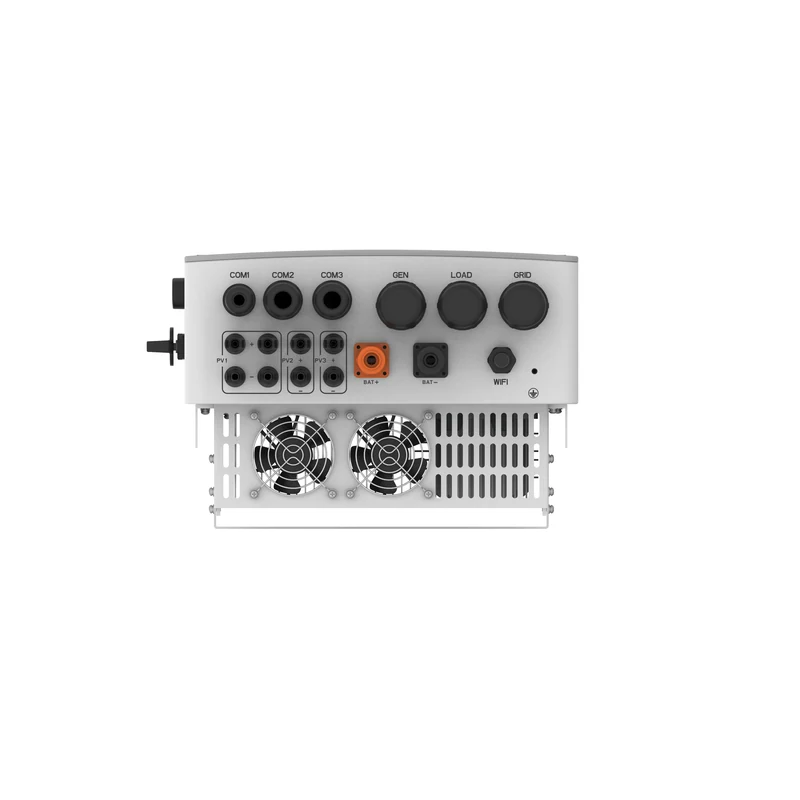

The current official DM3 datasheet does not publish cabinet dimensions or weight. Request the confirmed mechanical drawing for the supplied hardware before preparing the installation position. The gallery therefore includes the original bottom connection view.
Rear Mounting and Cooling

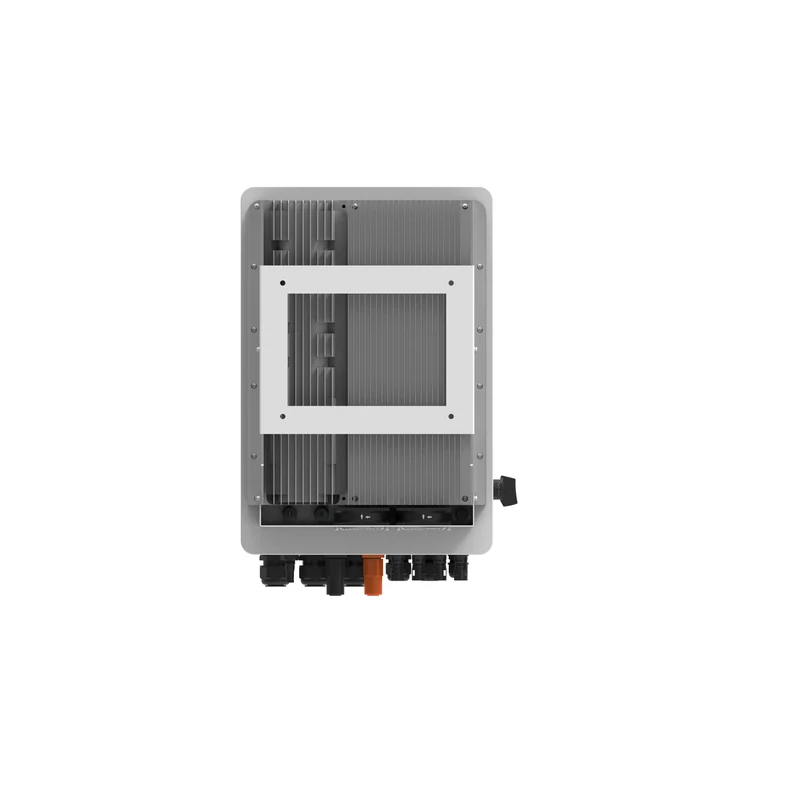

The original rear photograph shows the mounting bracket and heat-sink structure. Leave the specified airflow and service clearances.
Side Switching Controls

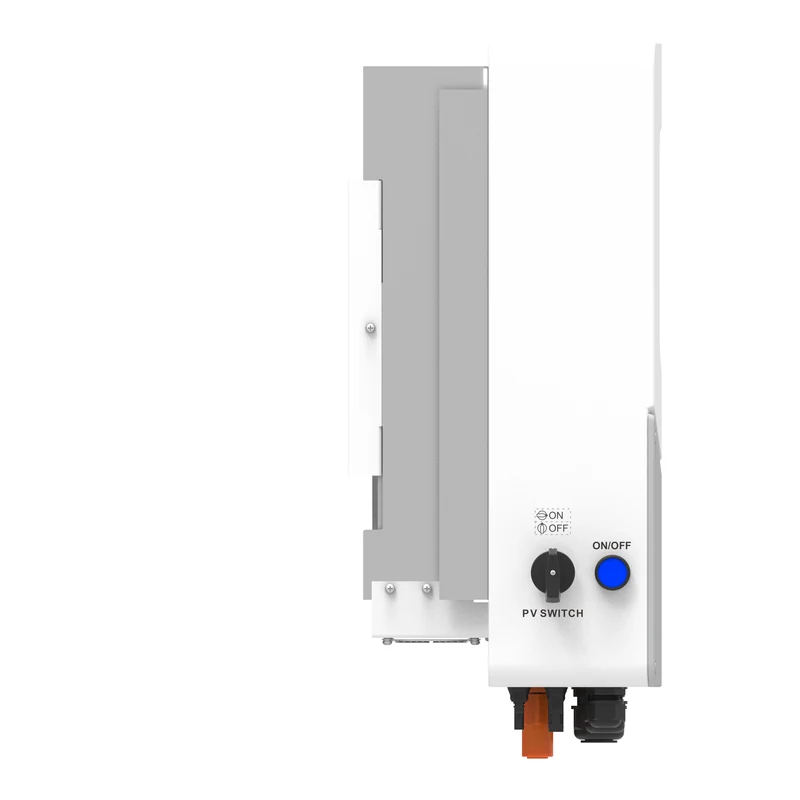

The original side view shows the PV switch and power button. Switching and isolation procedures follow the exact model instructions.
System Integration and Applications

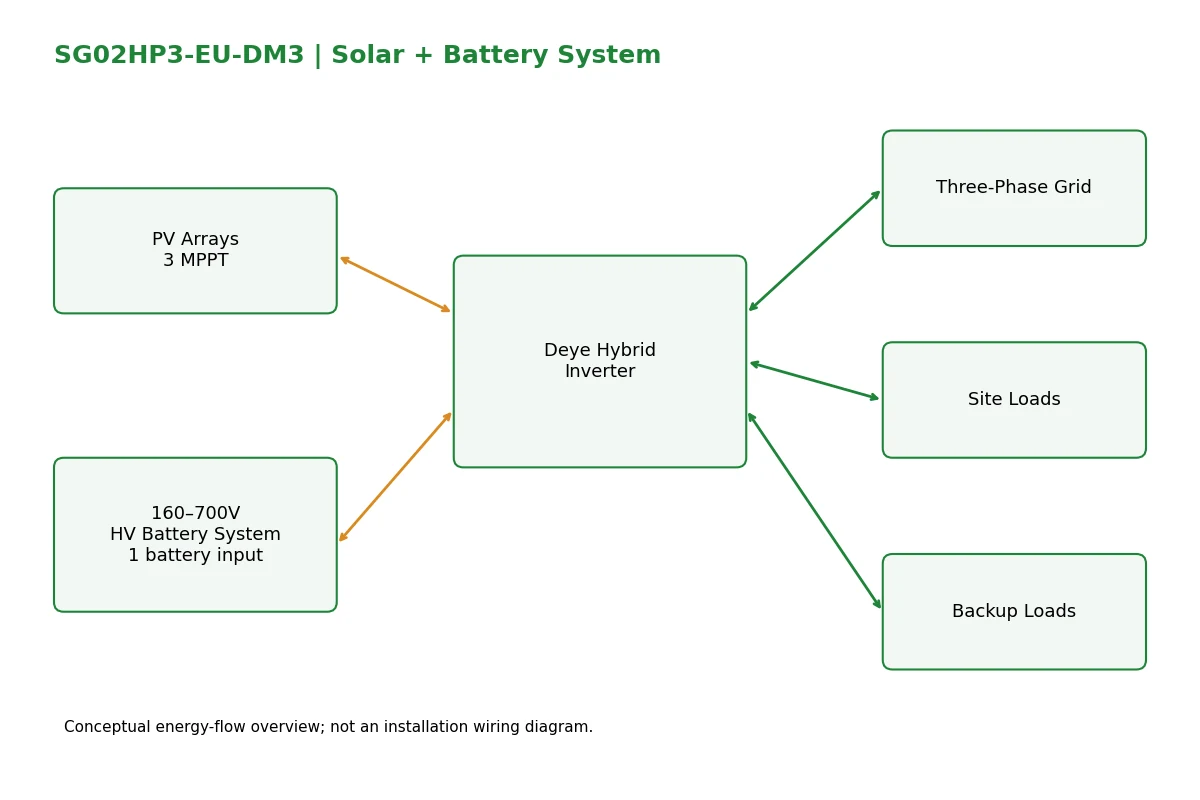

The gallery system overview illustrates energy flow between PV, battery, grid and site loads. It is not a terminal wiring diagram. Battery-bank sizing, protection, earthing and commissioning follow the approved electrical design.
- Three-phase solar self-consumption with compatible high-voltage battery storage.
- Backup supply for selected loads within inverter, battery and system limits.
- Suitable AC-coupled upgrades and generator-supported storage projects.
- Installer and distributor supply for residential and small commercial solar-storage projects.
Frequently Asked Questions
Can this inverter use a 48V or 51.2V LiFePO4 battery?
No. It requires a compatible 160–700V high-voltage lithium battery system.
Does the entire battery voltage range deliver full rated power?
Not necessarily. Available battery power depends on battery voltage, inverter current limits, battery BMS limits and operating conditions. Size the battery system against the required charge/discharge power.
How many MPPTs and strings are supported?
Three MPPTs with 2+1+1 strings. Operating current is 36+20+20A.
How should the battery current rating be read?
The maximum charging/discharging current is 55A through one battery input.
How long will backup power last?
Backup runtime depends on usable battery energy, actual load, battery limits and conversion losses. The inverter kW rating alone does not determine backup hours.
What approvals and warranty apply?
Confirm exact model certificates, destination-country grid acceptance and warranty terms before ordering. Deye lists five years with up to ten years depending on country and warranty policy.
