Deye 5–25kW Three-Phase High-Voltage Hybrid Inverter
The Deye SG01HP3-EU-AM2 combines PV generation, high-voltage battery charging and three-phase AC management in one wall-mounted inverter. Solarayen supplies original Deye-branded equipment for large homes, installer projects and small commercial storage systems. Available ratings are 5 / 6 / 8 / 10 / 12 / 15 / 20 / 25kW.
This series requires a compatible 160–700V high-voltage lithium battery. It is not a 48V-class battery inverter. Confirm BMS communication, battery operating voltage, current capability and the destination-country grid requirements when selecting a system.
Conceptual application illustration. The final installation follows the approved design and manufacturer instructions.
Key Features
- 2 MPPT for PV array tracking; exact string limits depend on the selected model.
- High-voltage lithium battery support over the 160–700V operating range.
- Six programmable battery charging and discharging periods.
- AC coupling for suitable existing solar installations.
- Up to ten compatible units in parallel for on-grid and off-grid operation, according to Deye configuration requirements.
- Generator-supported battery charging for suitable systems.
- Unbalanced three-phase output supported within manufacturer phase and total-power limits.
- IP65 enclosure; installation still requires appropriate clearances, ventilation and weather protection.
Model Selection
The 5/6kW models have a 30A maximum battery charge/discharge current; 8–20kW models have 37A; the 25kW model has 50A. PV inputs also differ: 5–10kW use 20+20A and 1+1 strings, 12/15kW use 26+20A and 2+1 strings, and 20/25kW use 26+26A and 2+2 strings. The 5/6kW units use natural cooling; higher ratings use intelligent air cooling.
Technical Specifications
The following table follows the current Deye model data. PV access power and PV input power are separate ratings; use both when designing the array.
| Model | SUN-5K -SG01HP3-EU-AM2 | SUN-6K -SG01HP3-EU-AM2 | SUN-8K -SG01HP3-EU-AM2 | SUN-10K -SG01HP3-EU-AM2 | SUN-12K -SG01HP3-EU-AM2 | SUN-15K -SG01HP3-EU-AM2 | SUN-20K -SG01HP3-EU-AM2 | SUN-25K -SG01HP3-EU-AM2 |
| Battery Input Data | ||||||||
| Battery Type | Lithium-ion | |||||||
| Battery Voltage Range(V) | 160-700 | |||||||
| Max. Charging/Discharging Current(A) | 30 | 37 | 50 | |||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||
| Number of Battery Input | 1 | |||||||
| PV String Input Data | ||||||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 | 30000 | 40000 | 50000 |
| Max. PV Input Power (W) | 8000 | 9600 | 12800 | 16000 | 19200 | 24000 | 32000 | 40000 |
| Max. PV Input Voltage (V) | 1000 | |||||||
| Start-up Voltage（V） | 180 | |||||||
| MPPT Voltage Range（V） | 150-850 | |||||||
| Rated PV Input Voltage(V) | 600 | 700 | ||||||
| Max. Operating PV Input Current（A） | 20+20 | 26+20 | 26+26 | |||||
| Max. Input Short-Circuit Current（A） | 30+30 | 39+30 | 39+39 | |||||
| No.of MPP Trackers/No.of Strings MPP Tracker | 2/1+1 | 2/2+1 | 2/2+2 | |||||
| AC Input/Output Data | ||||||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Max. AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 27500 |
| Rated AC Input/Output Current（A） | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29.0 | 37.9/36.3 |
| Max. AC Input/Output Current（A） | 8.4/8.0 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/39.9 |
| Max. Continuous AC Passthrough (grid to load)（A） | 80 | |||||||
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s | |||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||
| Rated Input/Output Voltage | 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE | |||||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||
| DC Injection Current | <0.5%ln | |||||||
| Efficiency | ||||||||
| Max. Efficiency | 97.6% | |||||||
| Euro Efficiency | 97.0% | |||||||
| MPPT Efficiency | ＞99% | |||||||
| Equipment Protection | ||||||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
|||||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||||
| Interface | ||||||||
| LCD/LED Display | LCD | |||||||
| Communication Interface | WiFi, RS485, CAN | |||||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G | |||||||
| General Data | ||||||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||||||
| Permissible Ambient Humidity | 0-100% | |||||||
| Permissible Altitude | 2000m | |||||||
| Noise(dB) | ≤ 55 | |||||||
| Ingress Protection(IP) Rating | IP 65 | |||||||
| Inverter Topology | Non-Isolated | |||||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||||||
| Cabinet Size(WxHxD mm) | 408×638×237 (Excluding Connectors and Brackets) | |||||||
| Weight(kg) | 30.5 | |||||||
| Type of Cooling | Natural Cooling | Intelligent Air Cooling | ||||||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. |
|||||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
|||||||
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||

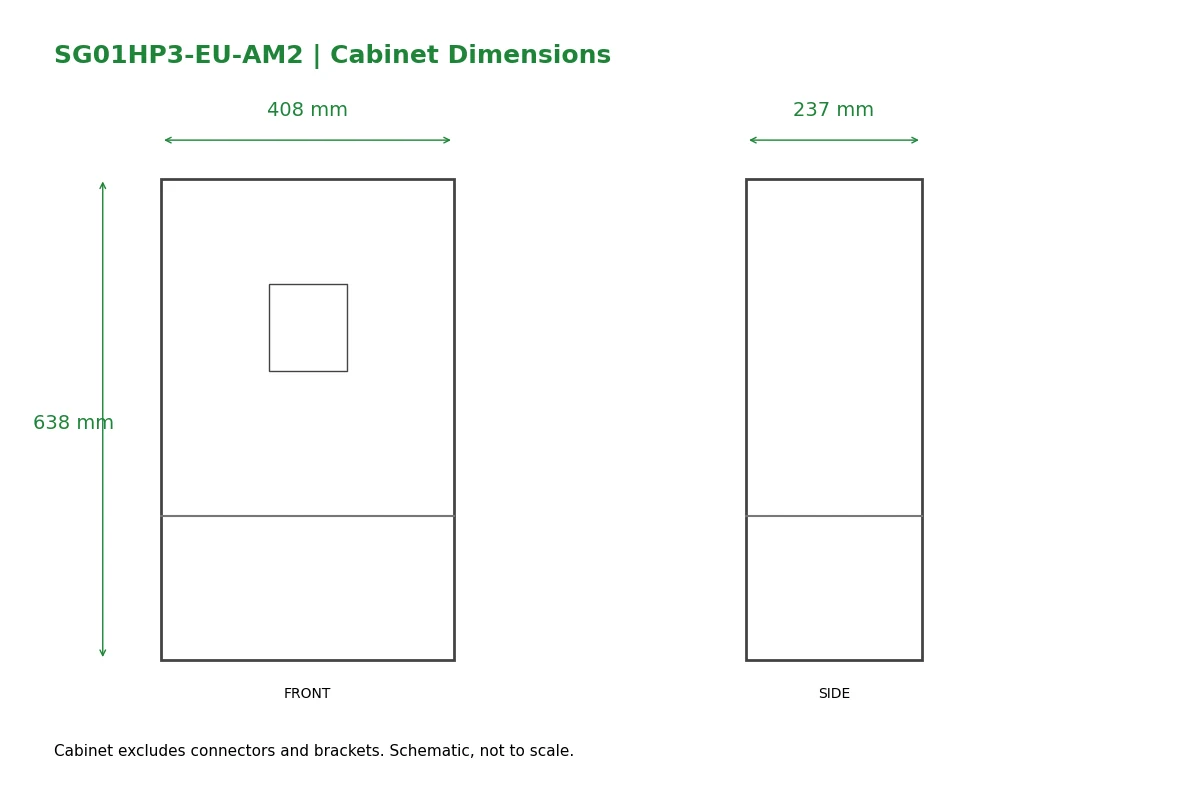

Cabinet dimensions exclude connectors and mounting brackets. The gallery dimension schematic is not to scale. Confirm the final installation drawing for the supplied hardware revision.
Side Controls

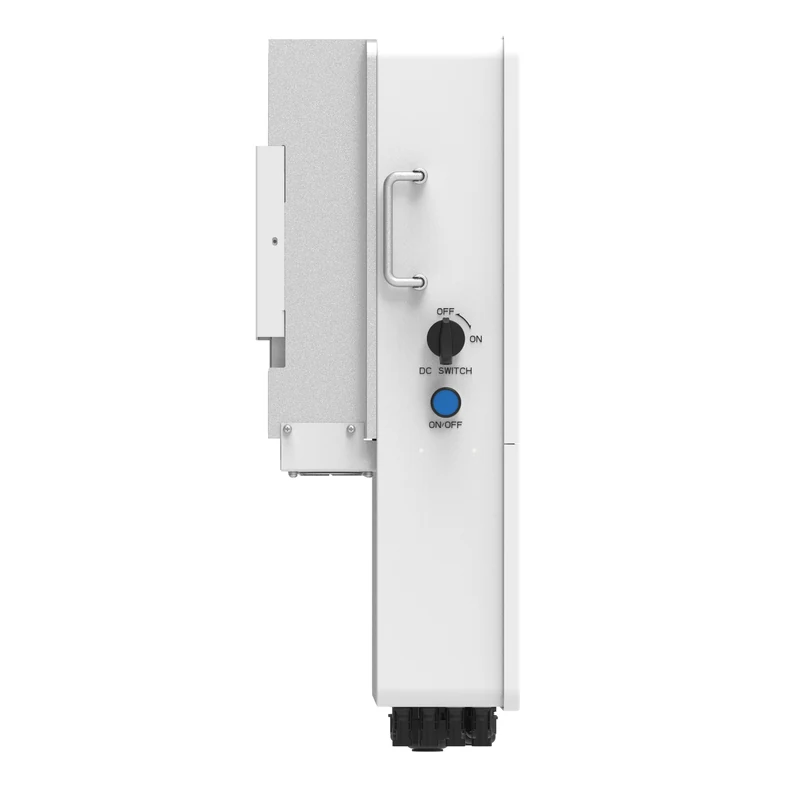

The original side photograph shows the DC switch, power button and handling arrangement. Follow the manufacturer switching and isolation procedure.
Original Deye Equipment

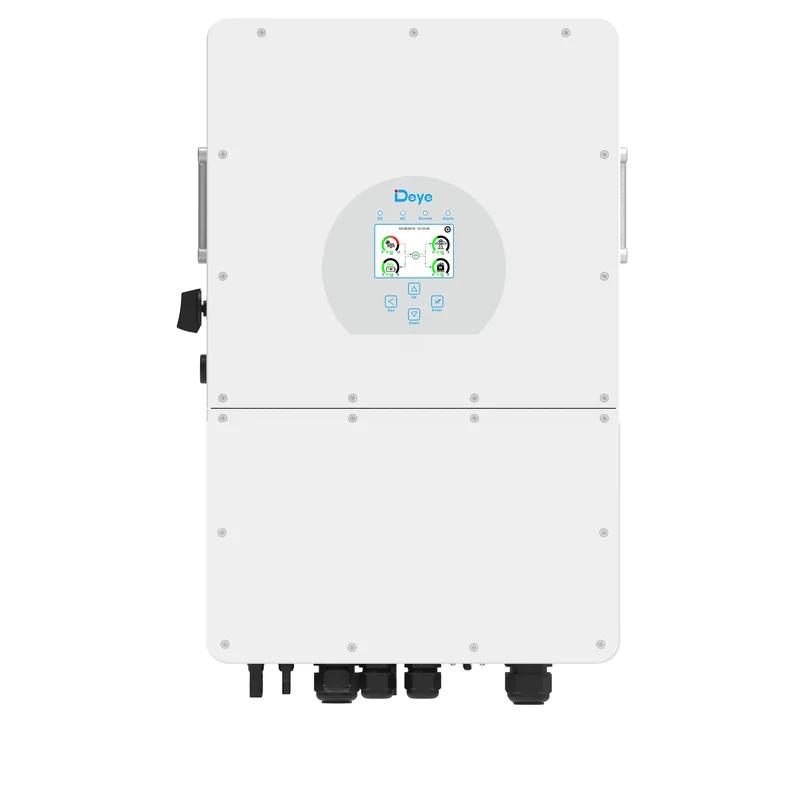

The manufacturer device image shows the enclosure and control layout. Solarayen branding is used on the page artwork; the inverter retains its original Deye identification.
Applications and System Integration
- Three-phase PV self-consumption with compatible high-voltage lithium storage.
- Backup supply for selected loads within inverter and battery limits.
- Generator-supported storage and suitable AC-coupled upgrades.
- Installer, distributor and commercial energy-storage projects.

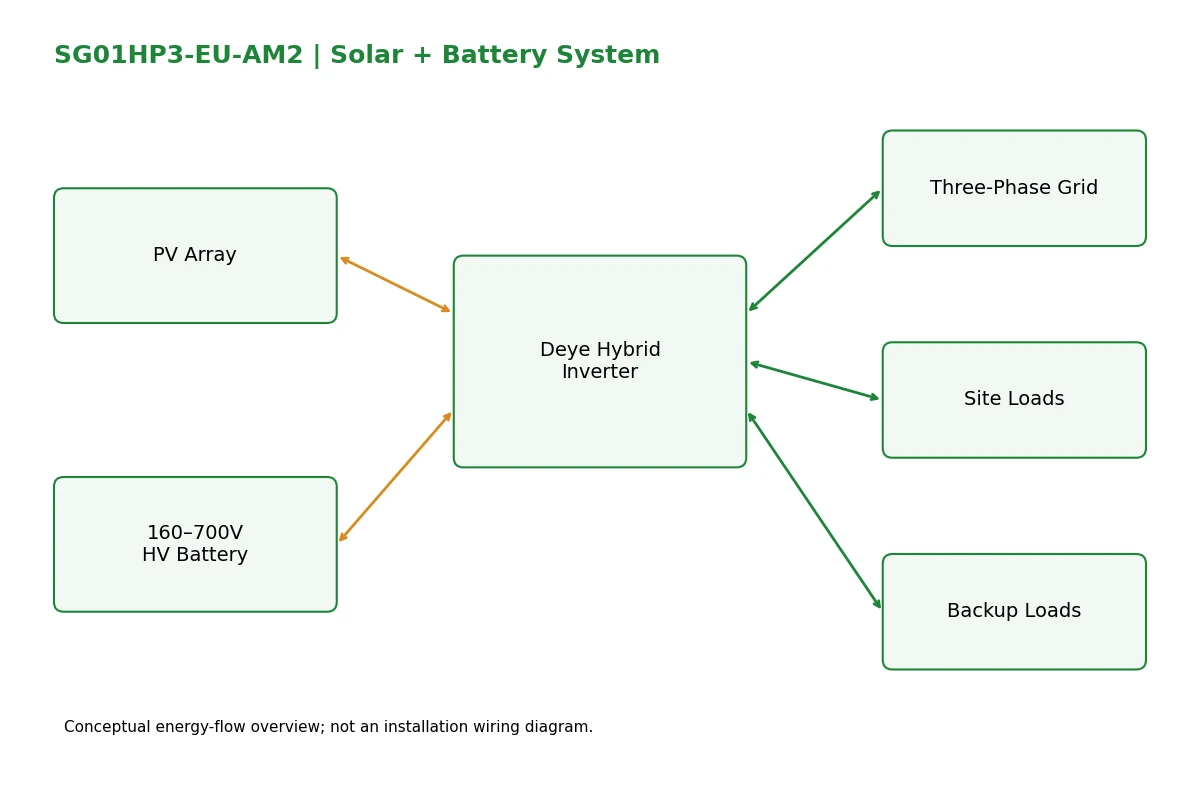

The gallery system overview illustrates energy flow between PV, battery, grid and loads. It is not a terminal wiring diagram. Final battery sizing, cable protection, earthing and commissioning follow the approved electrical design.
Frequently Asked Questions
Can this inverter use a 48V or 51.2V battery?
No. This series requires a compatible 160–700V high-voltage lithium battery. Confirm BMS compatibility and operating limits before pairing.
Does high-voltage battery support guarantee compatibility?
No. Battery voltage alone is insufficient. Check the approved BMS protocol, firmware, battery capacity, current limit and system configuration.
How many MPPTs are available?
All power variants have two MPPTs; the allowed string count and current differ across the range.
Can the phases supply different loads?
Deye supports unbalanced three-phase output. Phase-current and total-inverter limits still apply; confirm the selected model and load profile with the project design.
How long will battery backup last?
Runtime depends on usable battery energy, actual load, battery limits and conversion losses. The inverter kW rating alone does not determine backup duration.
Which warranty and approvals apply?
Deye lists five years with up to ten years depending on installation country and policy. Confirm exact model certificates, grid acceptance and warranty terms for the destination before ordering.
Downloads
Deye official installation manual (PDF)
Request a Quotation
Send your required power, destination country, site voltage, battery model and quantity. Solarayen will confirm a suitable configuration, availability and project quotation.
