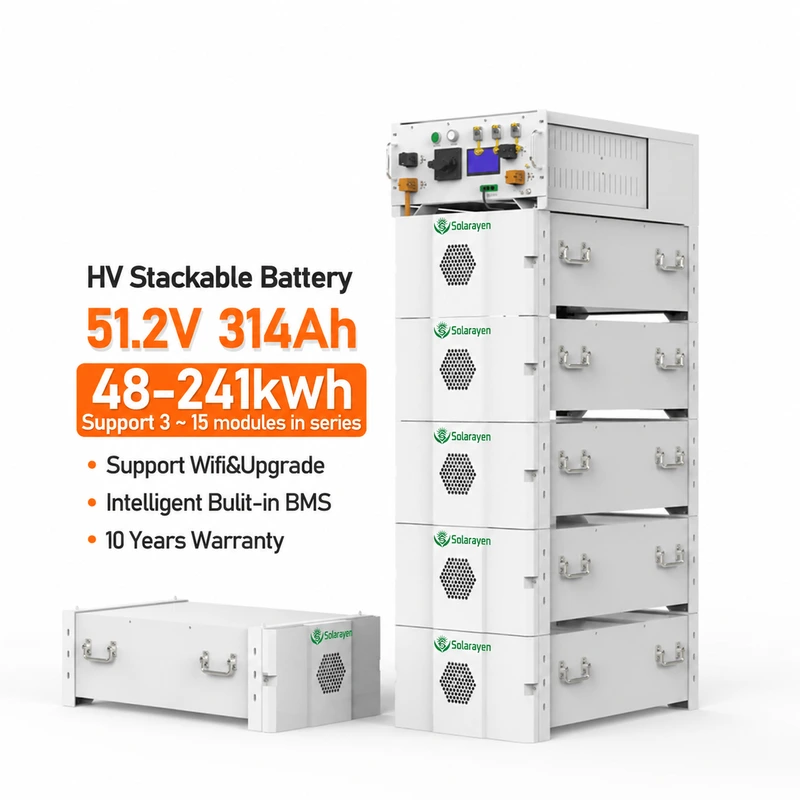

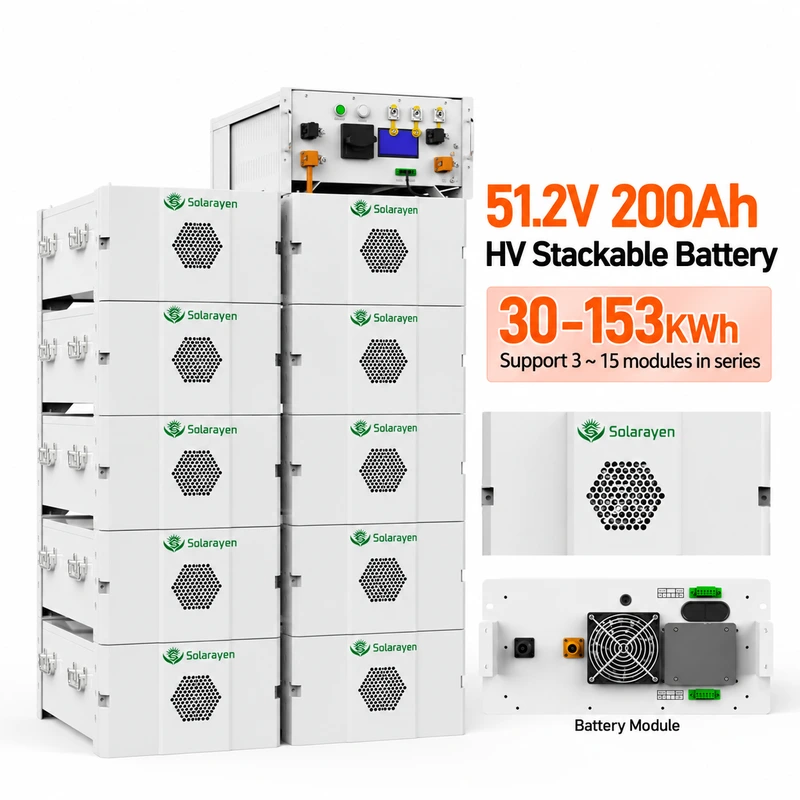

Solarayen high voltage stackable LiFePO4 batteries provide 200Ah, 280Ah and 314Ah module options for solar storage projects. Match system capacity and series voltage to your inverter and site requirements.
Key Features
- Grade A LiFePO4 cells with smart BMS.
- Modular stackable construction.
- CAN / RS485 communication and Wi-Fi monitoring.
- 3–15 modules in series per cluster; up to 10 clusters in parallel.
Technical Specifications
| Module option | 200Ah | 280Ah | 314Ah |
| Module voltage | 51.2V | 51.2V | 51.2V |
| Module energy (kWh) | 10.24 | 14.336 | 16.0768 |
| Charge / discharge current (A) | 100 | 140 | 157 |
| 14-module system (kWh) | 143.36 | 200.704 | 225.0752 |
| 15-module system (kWh) | 153.60 | 215.04 | 241.152 |
| 14 / 15-module voltage | 716.8 / 768V | 716.8 / 768V | 716.8 / 768V |
Product Details
Applications
Solar self-consumption, backup power and commercial stationary storage with compatible high-voltage conversion equipment.
FAQ
Can different capacities be mixed?
Use matched modules within a cluster. Ask Solarayen to confirm the approved configuration before ordering.
How do I choose the system?
Send your required energy, inverter model and quantity. We will check the voltage window, communication and installation arrangement.
Send Inquiry
Contact Solarayen for a configured quotation, final datasheet, warranty terms and applicable certification documents.
