Deye 3–6kW Single-Phase Hybrid Inverter
The Deye SG06LP1-EU series combines solar generation, low-voltage battery storage and single-phase AC power management in one wall-mounted inverter. Solarayen supplies this Deye-branded inverter for residential solar storage, installer projects and distribution enquiries.
Choose from 3kW, 3.6kW, 4kW, 4.6kW, 5kW and 6kW output ratings. The 3kW BM1 model has one MPPT; the higher-output BM2 models provide two independent MPPTs. Match the exact model to the PV array, battery and local grid requirements.

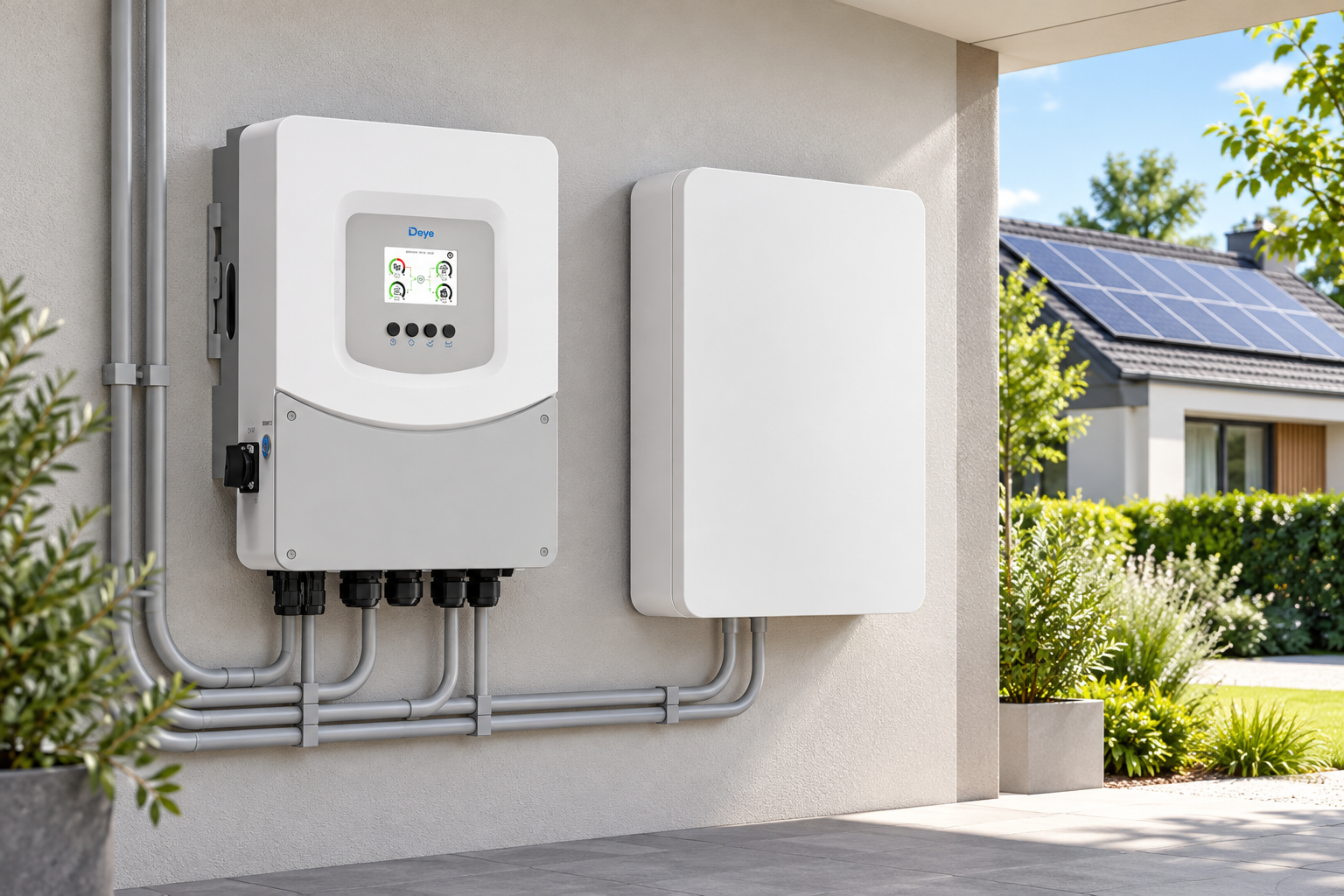

Conceptual application illustration. Final equipment layout and installation follow the approved design and manufacturer instructions.
Key Features
- Flexible solar storage: grid-connected and off-grid operating modes, with AC coupling for suitable existing PV systems.
- Battery scheduling: six configurable charging and discharging time periods.
- Expandable systems: manufacturer-supported parallel operation up to 16 inverters, subject to the approved configuration.
- Generator integration: supports battery charging from a compatible diesel generator.
- Local control: colour touch LCD and function buttons for settings and operating information.
- Outdoor-rated enclosure: IP65 protection with natural cooling and installation according to the manual.
Model Selection: 48V-Class Battery Versions
| Rated AC power | Model | Max. battery charge / discharge | MPPTs | Max. PV access power | Max. PV input power |
|---|---|---|---|---|---|
| 3kW | SUN-3K-SG06LP1-EU-BM1 | 70A | 1 | 6,000W | 4,800W |
| 3.6kW | SUN-3.6K-SG06LP1-EU-BM2 | 90A | 2 | 7,200W | 5,760W |
| 4kW | SUN-4K-SG06LP1-EU-BM2 | 95A | 2 | 8,000W | 6,400W |
| 4.6kW | SUN-4.6K-SG06LP1-EU-BM2 | 120A | 2 | 9,200W | 7,360W |
| 5kW | SUN-5K-SG06LP1-EU-BM2 | 120A | 2 | 10,000W | 8,000W |
| 6kW | SUN-6K-SG06LP1-EU-BM2 | 135A | 2 | 12,000W | 9,600W |
24V option: SUN-3K-SG06LP1-24-EU-BM1 uses a 20–30V battery and supports up to 140A charging/discharging. The 48V-class 6kW model supports up to 135A.
Common Technical Specifications
| Specification | SG06LP1-EU series |
|---|---|
| AC supply | Single phase, 220/230V, L+N+PE; 50/60Hz |
| Battery voltage / chemistry | 40–60V; lithium-ion or lead-acid (48V-class models) |
| Maximum PV voltage | 500V |
| MPPT operating range / start-up | 150–425V / 125V |
| PV current per MPPT | 18A operating; 27A short circuit |
| Maximum efficiency / Euro efficiency | 97.6% / 96.5% |
| Continuous AC passthrough | 50A (grid to load) |
| Off-grid peak output | 2 × rated power for 10 seconds |
| Communication | WiFi, RS485, CAN |
| Enclosure / cooling | IP65 / natural cooling |

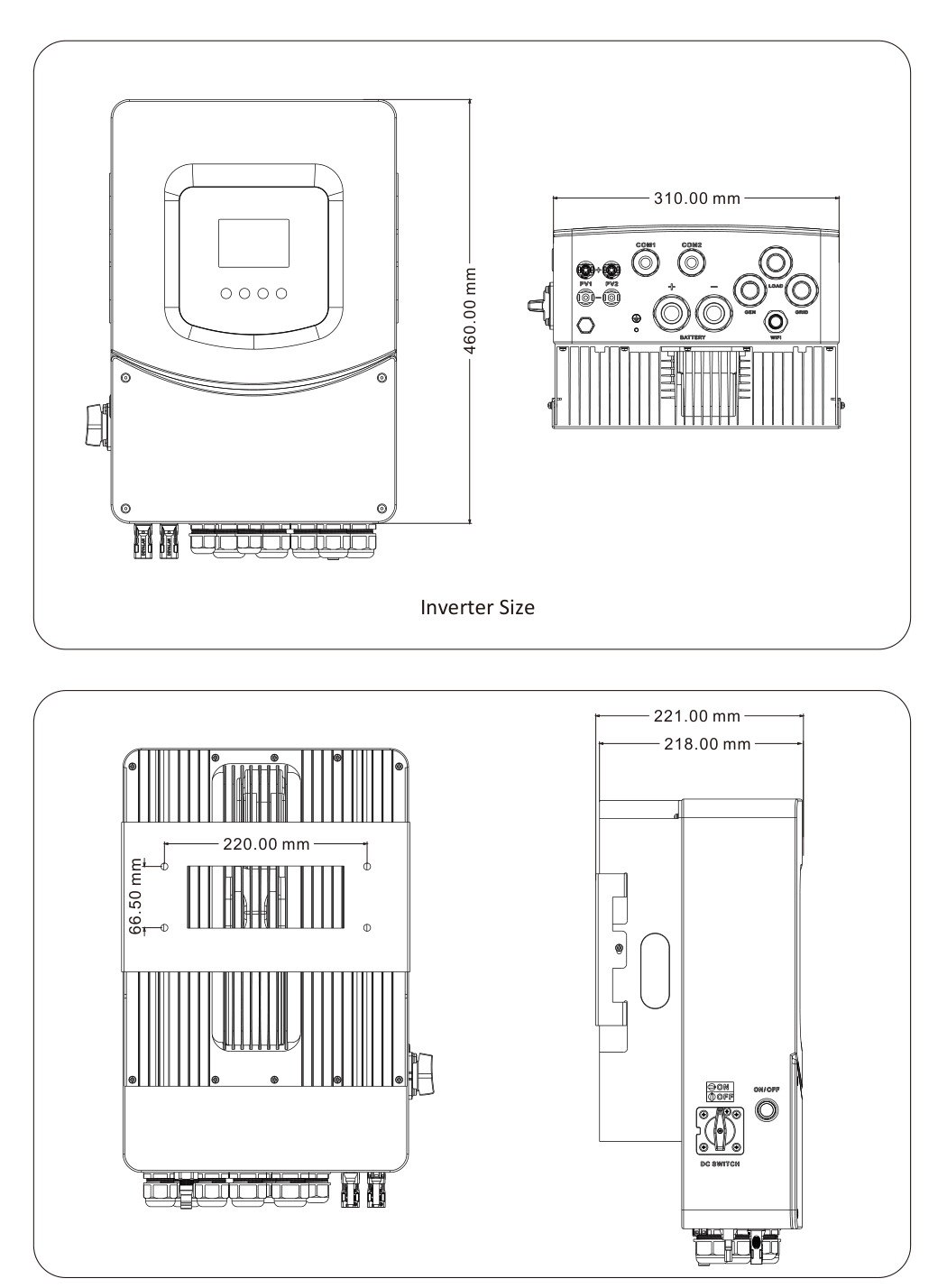

| Cabinet dimensions (W × H × D) | 310 × 460 × 218mm, excluding connectors and brackets |
| Weight | 15.6kg |
| Operating temperature | −40°C to +60°C; derating above 45°C |
PV access power and PV input power are separate manufacturer ratings. Confirm the proposed string voltage, current and module arrangement against both limits before installation.
Product Design and Service Access

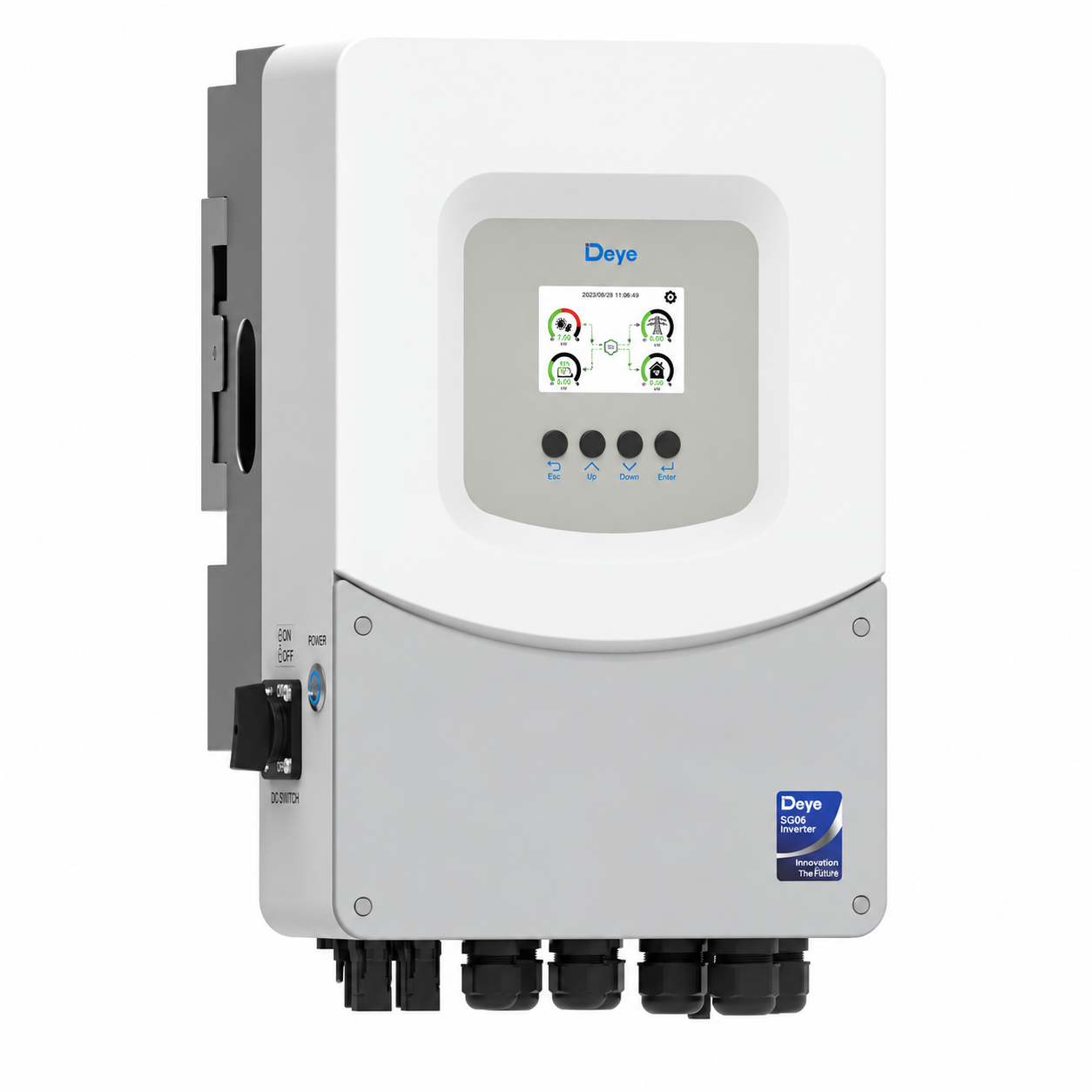

The compact enclosure combines the display, lower connection cover and integrated mounting arrangement. The views below show the original Deye product, its side controls and the connections described in the manufacturer manual.
DC Switch and Power Control

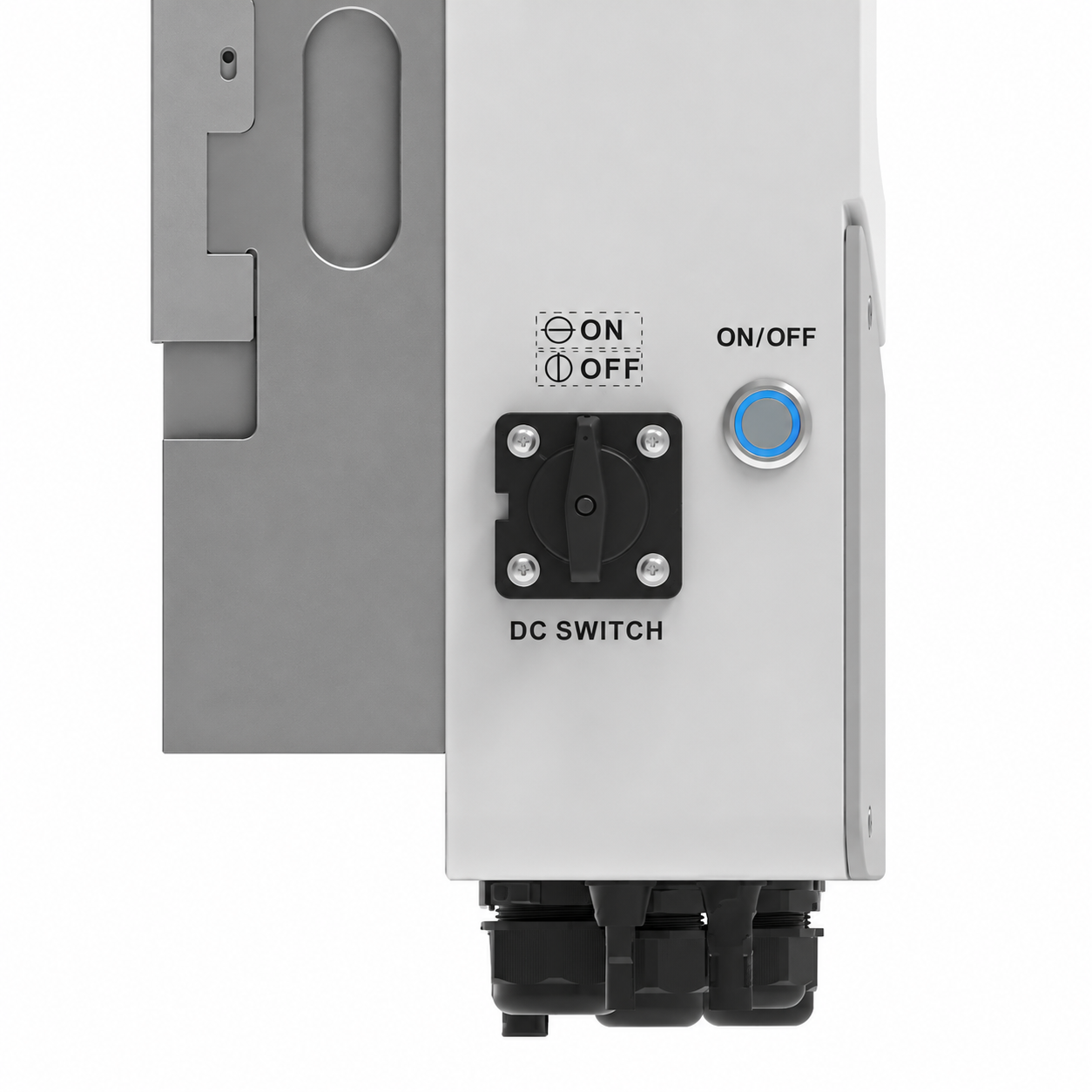

The side-mounted DC isolator and power on/off button are clearly accessible. Switching, isolation and commissioning must follow the inverter manual.
Controls and Communication Interfaces

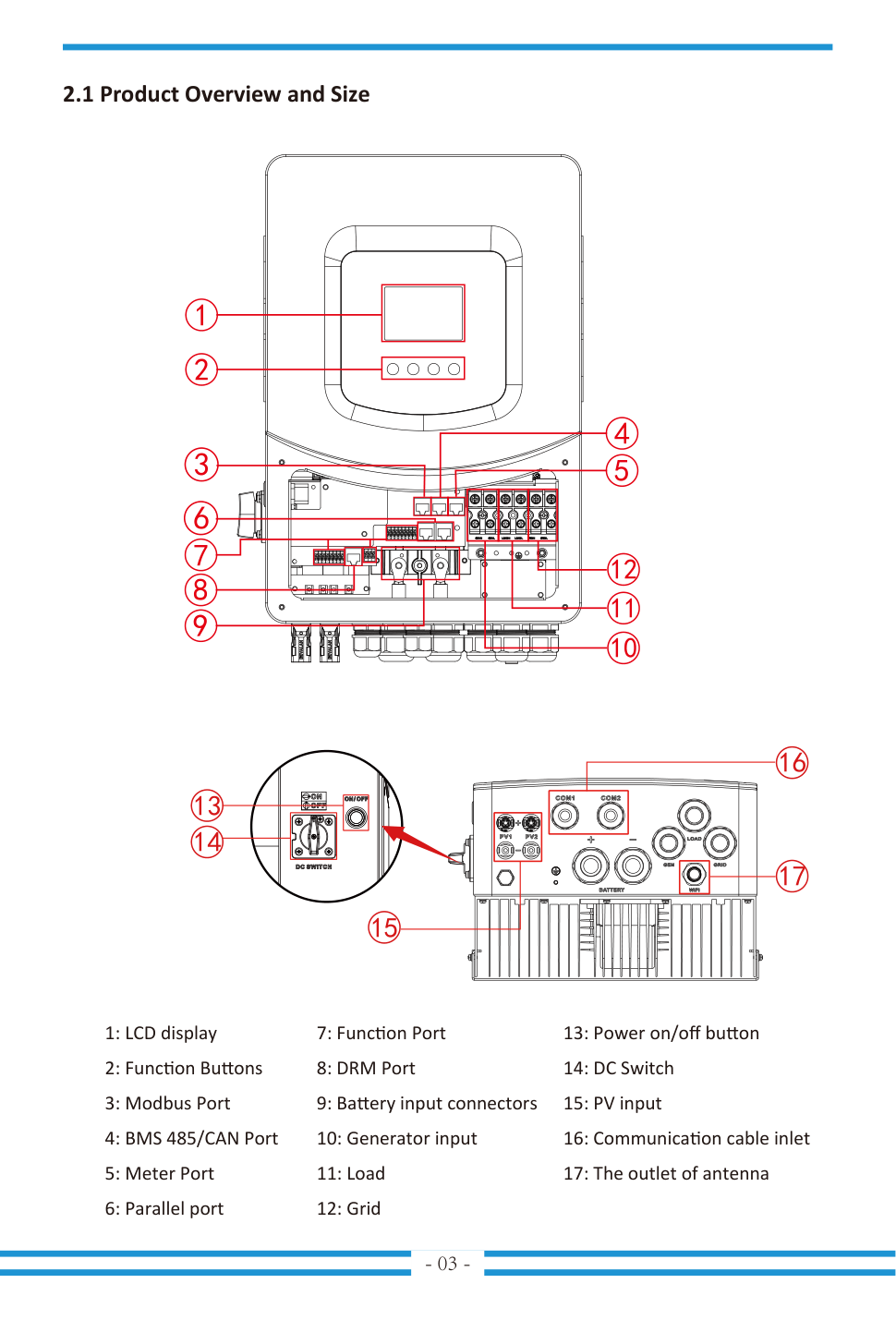

The numbered overview identifies the LCD, function buttons, BMS RS485/CAN connection, meter and parallel ports, battery connectors and grid/load/generator connections.
System Integration

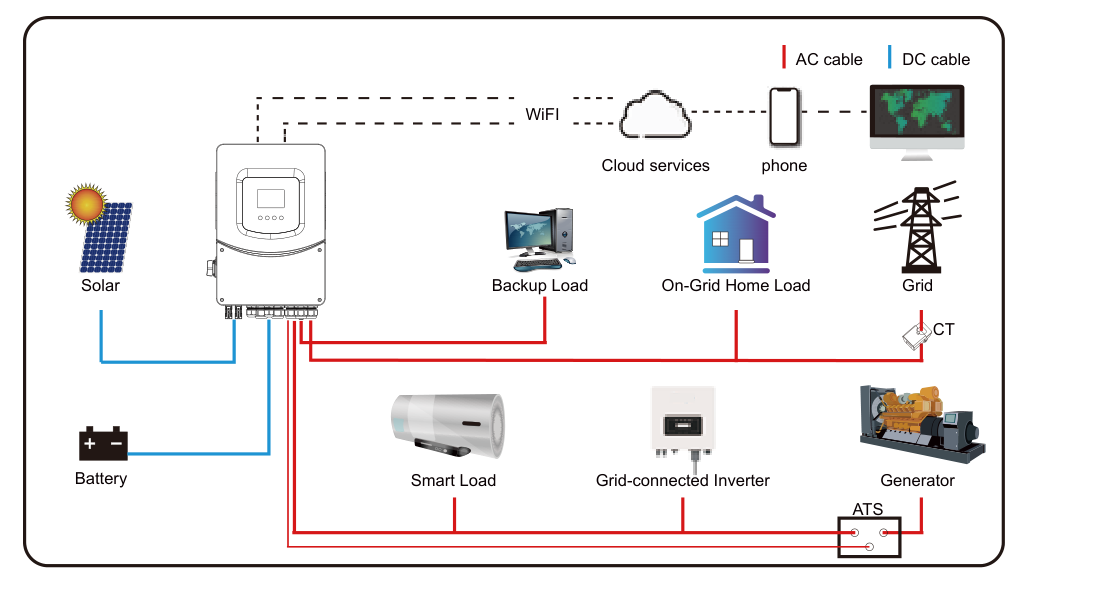

The gallery system architecture illustrates PV, battery, grid, backup loads and optional generator or AC-coupled equipment. It shows possible connections; the final design depends on the selected operating mode. The manufacturer wiring instructions and applicable local requirements take precedence.
For a Solarayen LiFePO4 battery pairing, confirm the battery voltage range, continuous current, supported BMS protocol and firmware compatibility. Inverter power alone does not determine battery capacity or backup duration.
Applications
- Residential solar self-consumption with compatible battery storage.
- Backup supply for selected essential circuits within system limits.
- AC-coupled upgrades to suitable existing solar installations.
- Small commercial sites with a compatible single-phase supply.
Frequently Asked Questions
Can I use a 51.2V LiFePO4 battery?
The 48V-class models accept a 40–60V battery range. The battery current limits and BMS communication must also be compatible. Confirm the exact battery and inverter models before ordering.
Does every model have two MPPTs?
No. The 3kW BM1 version has one MPPT. The 3.6–6kW BM2 versions have two. The 24V 3kW variant is also BM1.
Can the inverter charge the battery from a generator?
The series supports energy storage from a compatible diesel generator. Generator rating, connection and operating settings must be matched to the selected system.
What is included in the quotation?
We confirm the exact inverter version, accessories, monitoring option, quantity and delivery terms in the quotation. Battery modules and other system components are specified separately.
What warranty and grid approvals apply?
Deye lists a five-year warranty with up to ten years depending on the installation country and applicable policy. Confirm the warranty and model-specific approval documents for your destination before purchase.
Downloads
Deye SG06LP1-EU official datasheet (PDF)
Request a Quotation
Send your required power rating, country, battery model and quantity. Solarayen can help confirm a suitable inverter and battery combination and prepare the product specification and quotation.
