Jinko 550W Solar Panel – Tiger Pro 72HC

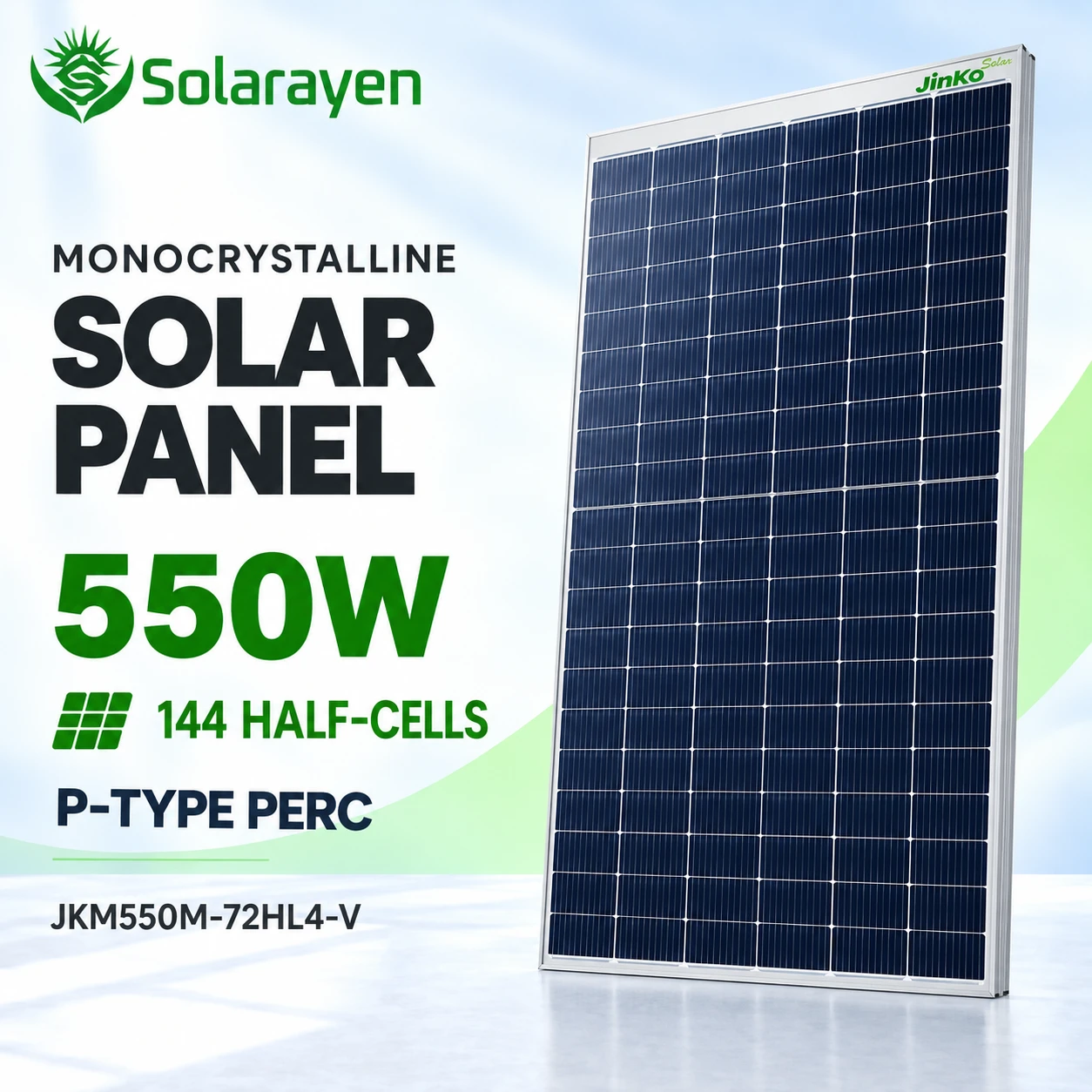

Solarayen supplies Jinko 550W solar panels for distributors, installers and solar project buyers. This example features the JKM550M-72HL4-V monofacial module, with P-type monocrystalline half-cells and a silver aluminium frame.
Build a complete quotation around your destination, quantity and project requirements. Solarayen can also supply suitable inverters and energy storage batteries as separately specified system components.
Key Features

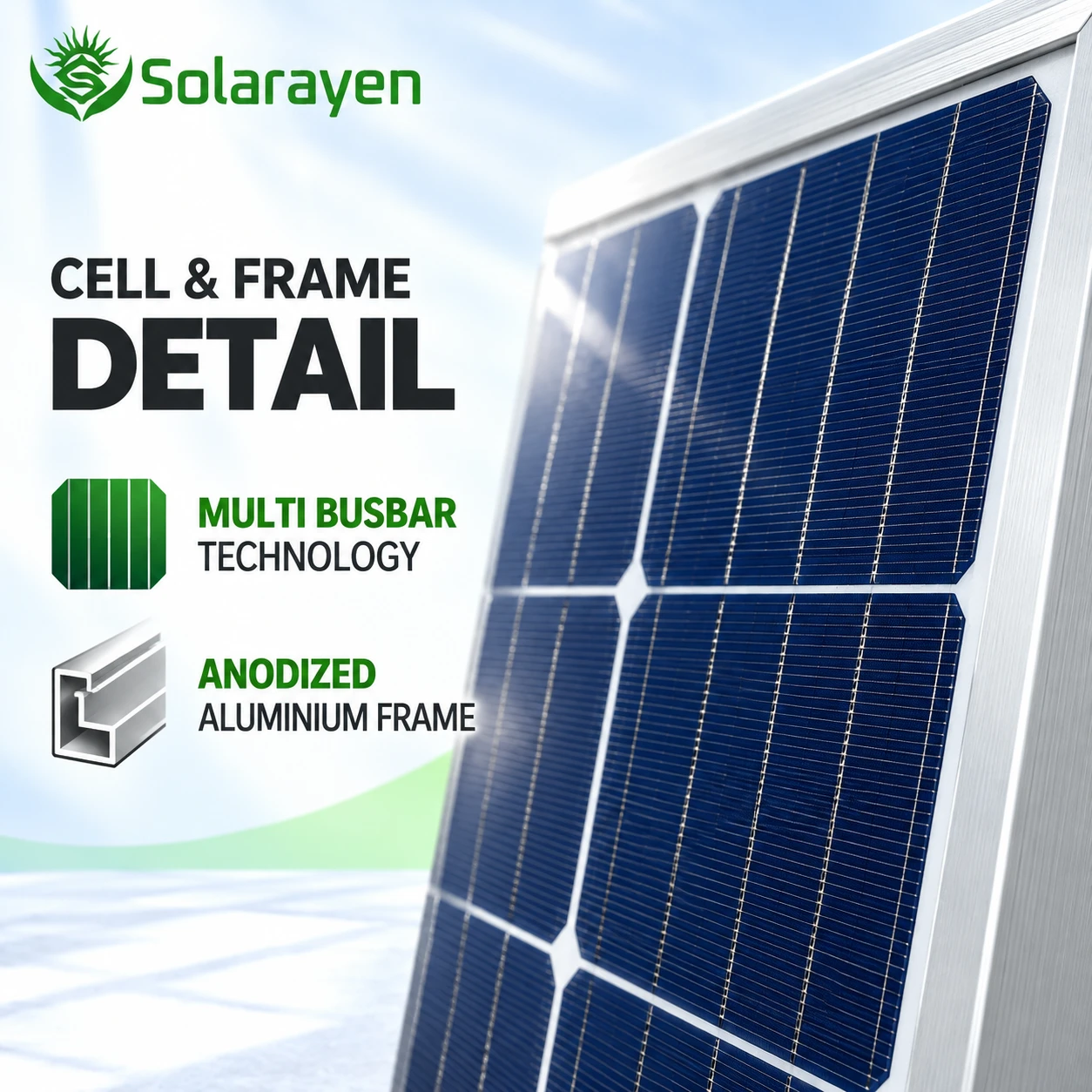

- Half-cell design: 144 cells with multi-busbar technology.

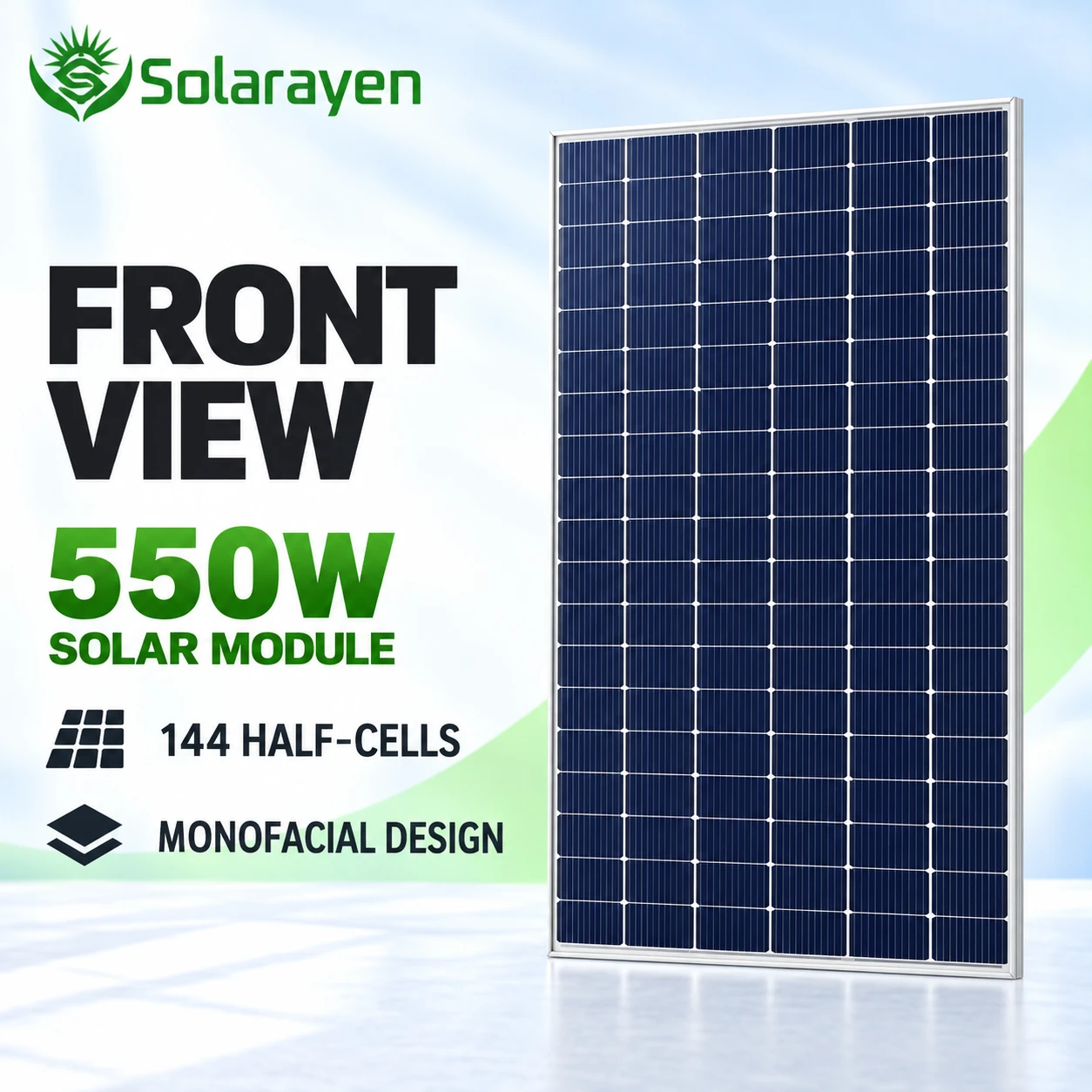

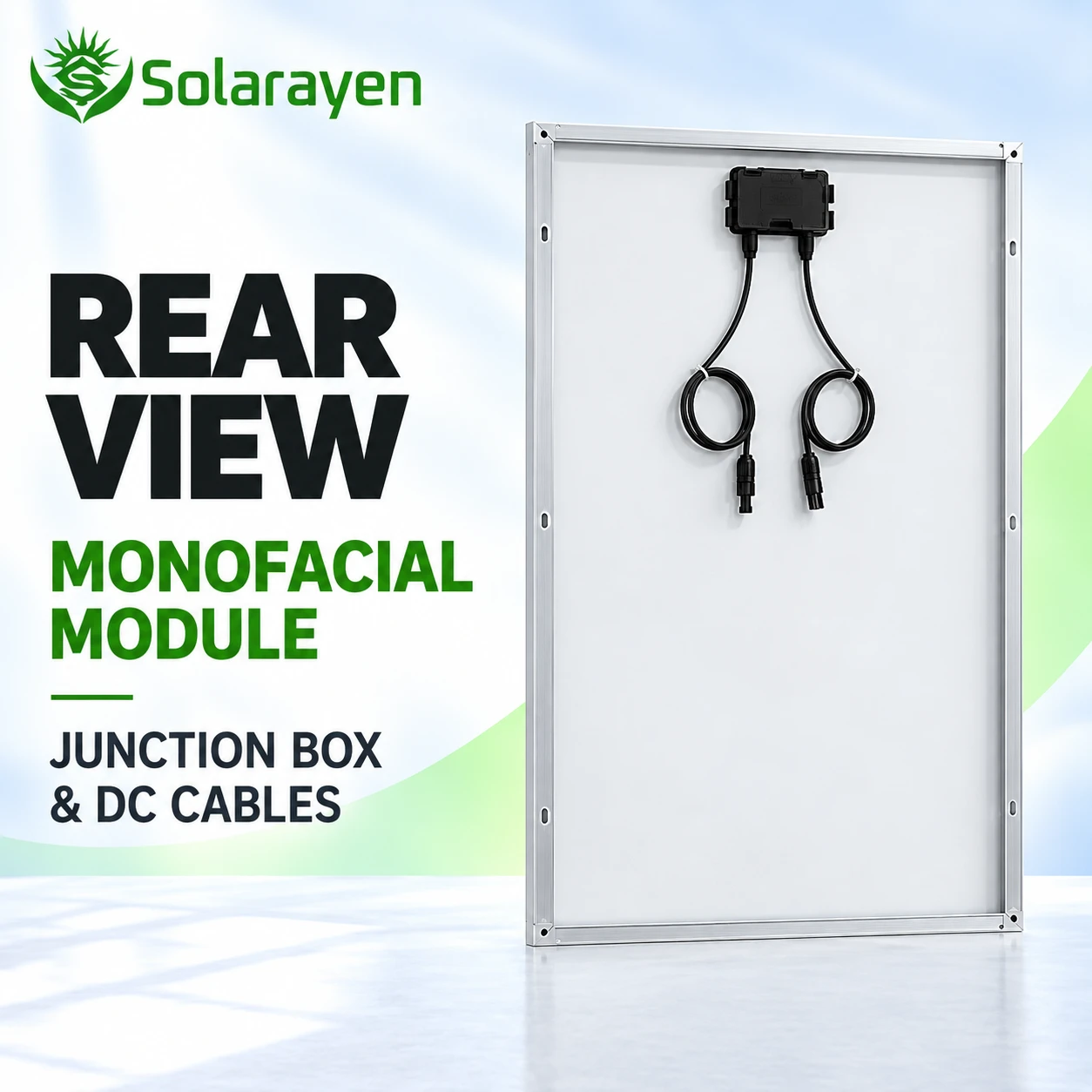

- Monofacial construction: front-side power generation with a glass front and backsheet rear.
- Project selection: suitable for consideration in rooftop and ground-mounted PV designs.
- Wholesale support: module quantities and supporting system equipment quoted to your requirements.
Technical Specifications
| Specification | JKM550M-72HL4-V |
|---|---|
| Rated power (STC) | 550W |
| Vmp / Imp | 40.90V / 13.45A |
| Voc / Isc | 49.62V / 14.03A |
| Module efficiency | 21.33% |
| Cell configuration | 144 half-cells (6 × 24), P-type monocrystalline |
| Dimensions (L × W × D) | 2274 × 1134 × 35mm |
| Weight | 28kg |
| Front glass / frame | 3.2mm tempered glass / anodized aluminium alloy |
| Junction box | IP68 |
| Power tolerance | 0 to +3% |
| Pmax temperature coefficient | −0.35%/°C |
Values on this page follow the Jinko JKM530–550M-72HL4-(V) F2 English datasheet. STC: 1000W/m² irradiance, 25°C cell temperature, AM1.5. Other revisions of the same model may differ; the quotation identifies the supplied version.
Applications
- Residential rooftop solar systems.
- Commercial and industrial rooftops.
- Ground-mounted photovoltaic projects.
- Hybrid solar storage systems with a compatible inverter and battery.
Residential Rooftop Solar
Plan a rooftop array around usable roof area, orientation and shading. Match the inverter and optional energy storage to the household demand.
Commercial and Industrial Rooftops
For warehouses, workshops and commercial sites, the module arrangement and mounting system follow the approved roof assessment and electrical design.
Ground-Mounted PV Projects
Ground arrays offer flexible layouts where suitable land is available. Foundation design, row spacing and cable routing are project-specific.
Export Packaging and Delivery
Confirm the supplied module revision, pallet configuration, order quantity and destination before shipment. Packing quantities and loading plans are specified in the quotation.
System Matching
String design must account for inverter MPPT voltage, maximum DC voltage, operating current and short-circuit current limits. Check cold-weather open-circuit voltage before confirming the string length. A solar panel does not connect directly to a lithium battery without suitable charge-control equipment.
Frequently Asked Questions
Is this a bifacial or N-type solar panel?
This example uses the P-type monofacial JKM550M-72HL4-V. Bifacial and N-type products require their own model-specific specification.
Does 550W mean the panel always produces 550W?
550W is its rated power at standard test conditions. Actual output varies with sunlight, module temperature, shading, orientation and system losses.
Can you supply panels with an inverter and battery?
Yes. Share the project country, intended system size and whether battery backup is required. We can prepare a matched equipment proposal.
What warranty applies?
The referenced datasheet lists a 12-year product warranty and 25-year linear power warranty. The applicable manufacturer policy, eligibility and supplied version are confirmed before ordering.
What information is needed for a wholesale quotation?
Please send your required quantity and destination country or port. We will confirm the module version, availability, packing, delivery time and EXW or FOB quotation.
Official Datasheet
Download Jinko Tiger Pro 530–550W F2 datasheet (PDF)
Request a Quotation
Looking for Jinko 550W solar panels for wholesale or a project? Send your quantity and destination to receive model details and a quotation.
